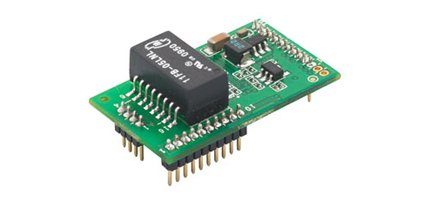

MiiNePort E2-H
Embedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, 0 to 55°C
Moxa'nın MiiNePort E2 serisi, üreticilerin cihazlarına kolaylıkla seri-ethernet bağlantısı özelliği ekleyebilecekleri modül çözümleridir. MiiNePort E2 serisinde MOXA’nın ikinci nesil SoC ürünü MiiNe kullanılmıştır. Ürün 10/100 Mbps ethernet, maksimum 921.6 Kbps seri baud hızını desteklerken çok yönlü kullanıma hazır çalışma modları seçimine olanak tanır ve oldukça düşük güç sarfiyatına sahiptir. MiiNePort E1, Moxa'nın yenilikçi NetEZ teknolojisini kullanarak, standart bir seri arayüze sahip herhangi bir cihazı hemen Ethernet özellikli bir cihaza dönüştürmek için kullanılabilir. MiiNePort E2, RJ45 konnektör içermeyen en küçük modül çözümüdür.
· En küçük gömülü cihaz sunucu çözümü (29 x 17 x 12.6mm)
· 3.3V-5V giriş beslemesi
· En düşük güç sarfiyatı
· Çok çeşitli çalışma modları (Real COM, RFC2217, TCP, UDP, MCSC)
MiiNe—Moxa 2nd Generation SoC
MiiNe özellikleri:
- 1 veya 2-port seri-ethernet uygulamaları.
- 32-bit ARM 7core
- Moxa’nın gelişmiş UART teknolojisi
- 2MB Flash ve 4MB SDRAM
ÜRÜN SİPARİŞ KODLARI :
|
MiiNePort E2 |
Embedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, 0 to 55°C |
|
MiiNePort E2-T |
Embedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, -40 to 85°C |
|
MiiNePort E2-H |
Embedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, 0 to 55°C |
|
MiiNePort E2-H-T |
Embedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, -40 to 85°C |
| • Form Factor | |
| Type | Drop-in module |
| Dimensions | 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in) |
| Weight | 5 g (0.01 lb) |
| • System Information | |
| CPU | 32-bit ARM Core |
| RAM | 4 MB built in |
| Flash | 2 MB built in |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 1 |
| Transmission Format | Standard TTL |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | MiiNePort E2: 50 bps to 230.4 kbps MiiNePort E2-H: 50 bps to 921.6 kbps |
| Note | Non-standard baudrates supported |
| • Serial Signals | |
| TTL | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
| • Digital I/O Pins | |
| GPIO | 4 configurable I/O pins |
| • Software | |
| Network Protocols | ICMP, ARP, IPv4, TCP, UDP, DHCP, HTTP, SNMP V1, SMTP, TFTP, Auto IP, Telnet, BOOTP |
| Configuration Options | Web Console, Serial Console (Serial Command Mode), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Operation Modes | Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, RFC2217, MCSC |
| NetEZ Function | EZPower, EZPage, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-channel Serial Communication) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 3.3 to 5 VDC |
| Input Current | 157 mA @ 3.3 VDC |
| • Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV IEC 61000-4-5 Surge: Power 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 P |
| Vibration | IEC 60068-2-6, 5-25.7 Hz: ±15 mm; 25.7-500 Hz: 20g; 3 hours/axis |
| Shock | IEC 60068-2-27, 500g/2ms |
| Drop | IEC 60068-2-34, IEC 60068-2-32, ISTA-2A |
| Note | Standards testing is done with the MiiNePort E2-ST or MiiNePort E2-H-ST starter kits. |
| • Reliability | |
| MTBF (mean time between failures) | Time: 5,696,350 hrs Standard: Telcordia (Bellcore) SR-332 |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
