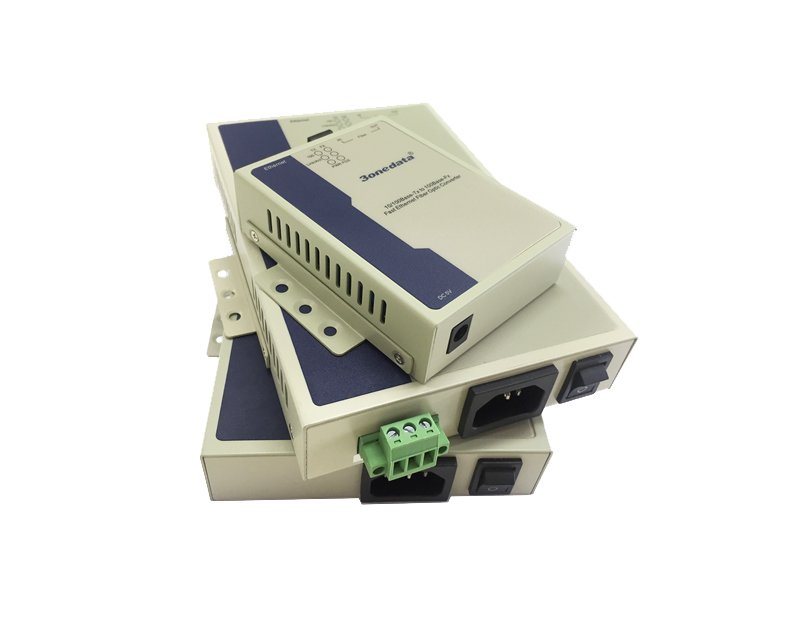

Model1100 (MM,ST)
1*10/100M Ethernet + 1*100M FX, ST, 1310nm Multi-mode, 2Km, 5VDC, include 220V/5V power adaptor
- 1x100M fiber ve 1x100M bakır port
- Dahili 220VAC/48VDC ve harici 5VDC
- -10~60℃ çalışma sıcaklık aralığı
| Model1100 (MM,SC) | 1*10/100M Ethernet+ 1*100M FX, SC, 1310nm Multi-mode, 2Km, 5VDC, include 220V/5V power adaptor |
| Model1100 (MM,ST) | 1*10/100M Ethernet+ 1*100M FX, ST, 1310nm Multi-mode, 2Km, 5VDC, include 220V/5V power adaptor |
| Model1100 (SM,SC) | 1*10/100M Ethernet+ 1*100M FX, SC, 1310nm Single-mode, 20Km, 5VDC, include 220V/5V power adaptor |
| Model1100 (SM,ST) | 1*10/100M Ethernet+ 1*100M FX, ST, 1310nm Single-mode, 20Km, 5VDC, include 220V/5V power adaptor |
| Toplam Port Sayısı | : | 2 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 1 |
| 100BaseFX SFP | : | 1 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX
|
| Copper Port |
10/100Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
|
|
Fiber Port |
Standard: 100Base-FX Connection mode: SC/ST/FC optional
Transmission distance: Multimode: 2km Single mode: 20/40/60/80/100/120km
Fiber cable: Multimode: 50/125μm or 62.5/125μm Single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm
Transmission wavelength: Multimode: 1310nm Single mode: 1310nm or 1550nm
|
|
LED Indicator |
Port indicator, power supply indicator
|
|
Power Requirement |
Support three kinds of mains input methods External 5VDC, DC round head Built-in 220VAC, AC socket with switch Built-in 48VDC, 3-pin 5.08mm pitch terminal blocks
|
|
Power Consumption
|
4W |
|
Environmental Limit |
Operating temperature: -10~60℃ Storage temperature: -20~70℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: metal Installation: wall or DIN-Rail mounting Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply) 115mm×30mm×173.2mm (built-in power supply)
|
|
Certification |
CE, FCC, RoHS |
