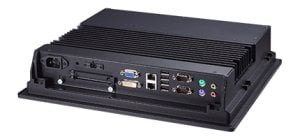

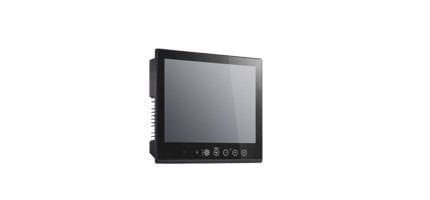

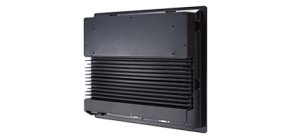

MPC-2120-E2-T
12-inch industrial fanless panel computers
DataSheet Link: MPC-2120-E2-T
MPC-2120 serisi, E3800 serisi Intel® Atom™ işlemci içeren, endüstriyel ortamlar ve uygulamalar için tasarlanmış 12" Panel-PC ürünüdür. MPC-2120 serisi, yazılım ile seçilebilen 2adet iki adet RS-232/422/485 seri portu ve iki adet gigabit Ethernet LAN portu ile çok çeşitli seri arayüzleri ve aynı zamanda yüksek hızlı IT iletişimini destekler. 1000-nit multi-touch LCD ekranı ürünün açık hava kullanımını kolaylaştırmaktadır. Ürün sahip olduğu ATEX sertifikası ile patlayıcı ortamlarda rahatlıkla kullanılabilmektedir.
- 12-inch panel computer Rugged HMI Solution Brochure
- Intel® Atom™ Processor: E3845 1.91 GHz or E3826 1.46 GHz
- -40 to 70°C wide-temperature design, no fan / no heater
- 1000-nit sunlight-readable LCD
- Class 1 Division 2*, ATEX Zone 2*, and IECEx* certified
- Wide range 9 to 36 VDC power input
ÜRÜN SİPARİŞ KODLARI :
|
Industrial 12 inches panel computer, Intel Atom® Processor E3826 dual core 1.46 GHz, 1000 nits LCD with multi-touch, 9 to 36 VDC, -40 to 70°C operating temperature, 4GB RAM and 32GB CFast card with WS7E 64 bit OS pre-installed |
|
|
Industrial 12 inches panel computer, Intel Atom® Processor E3845 Quad core 1.91 GHz, 1000 nits LCD with multi-touch, 9 to 36 VDC, -40 to 70°C operating temperature, 4GB RAM and 32GB CFast card with WS7E 64 bit OS pre-installed |
|
|
MPC-2120-E2-T |
Industrial 12 inches panel computer, Intel Atom® Processor E3826 dual core 1.46 GHz, 1000 nits LCD with multi-touch, 9 to 36 VDC, -40 to 70°C operating temperature, 4GB RAM |
|
Industrial 12 inches panel computer, Intel Atom® Processor E3845 Quad core 1.91 GHz, 1000 nits LCD with multi-touch, 9 to 36 VDC, -40 to 70°C operating temperature, 4GB RAM |
| • Computer | |
| CPU | Intel® Atom™ Processor: E3826 Dual Core 1.46 GHz or E3845 Quad Core 1.91 GHz |
| Supported OS | Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit (the OS is not pre-installed in some models) |
| System Memory | 4 GB pre-installed (SDRAM) |
| USB | USB 2.0 hosts x 2, type-A connectors, supporting system boot up |
| Storage | 1 CFast slot + 1 SD card slot (storage is not pre-installed in some models) |
| • Display | |
| Panel Size | 12.1-inch viewable image size |
| Touch | Capacitive multi-touch |
| Aspect Ratio | 4:3 |
| Pixels | 1024 x 768 |
| Pixel Pitch (RGB) | 0.240 (H) x 0.240 (V) mm |
| Response Time | 5 ms (gray to gray) |
| Contrast Ratio | 700:1 |
| Light Intensity | 1000 cd/m2 |
| Note: The brightness level of the MPC-2120 is from 0 to 10. To extend the lifetime of the display, we recommend using it with a brightness level of 8 or less at ambient temperatures above 60°C. | |
| Viewing Angles | 160°/140° |
| Active Display Area | 245.76 (H) x 184.32 (V) mm |
| Max. No. of Colors | 16.2M (8-bit color) |
| • Ethernet Interface | |
| LAN | Auto-sensing 10/100/1000 Mbps ports (RJ45 port) x 2 |
| Magnetic Isolation Protection | 1.5 kV, built-in |
| • Serial Interface | |
| Serial Standards | 2 RS-232/422/485 ports, software-selectable (DB9 male) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Digital Input | |
| Input Channels | DI x 4 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 1: +3 V max. Logic level 0: +10 V to +30 V (Source to DI) |
| Connector Type | 10-pin terminal block |
| Isolation | 3 kV optical isolation |
| • Digital Output | |
| Output Channels | DO x 4, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin terminal block |
| Isolation | 3 kV optical isolation |
| • Physical Characteristics | |
| Housing | Aluminum sheet metal |
| Weight | 2.64 kg (5.82 lb) |
| Dimensions | 306 x 245 x 64 mm (12 x 9.6 x 2.5 in) |
| Mounting | VESA mount (50 x 75 mm), and panel mount |
| System Cooling | Fanless thermal design |
| • Environmental Limits | |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Anti-Vibration | 2 Grms, 5-500 Hz frequency, compliant with IEC 60068-2-6 standard |
| Anti-Shock | 20 Grms, half sine wave under system operating, 11 ms duration, compliant with IEC 60068-2-27 standard |
| • Power Requirements | |
| Input Voltage | 12/24 VDC (Range 9 to 36 VDC) |
| Power Consumption | Less than 40 W |
| • Standards and Certifications | |
| Safety | UL 60950-1, IEC 60950-1 |
| EMC | EN 55032, EN 55024 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Ingress Protection Rating | IP66 (front) / IP20 (rear) |
| Green Product | RoHS, cRoHS, WEEE |
| • Warranty | |
| Warranty Period | • Computer system: 3 years • LCD panel: 1 year |
