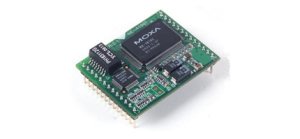

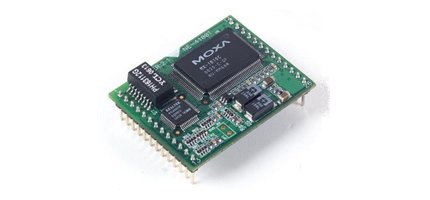

NE-4100T-T
10/100M Ethernet Network Enabler for serial(TTL) device, DIL package, -40 to 75°C
Moxa NE-4100T ürünü, seri cihazlarına ağ bağlantısı eklemek isteyen üreticiler için tasarlanmıştır. Seri arabirime sahip herhangi bir cihazı kolaylıkla Ethernet uyumlu bir cihaza dönüştürmek için kullanılabilir. NE-4100T, 10/100 Mbps Ethernet'i destekler ve TCP Server, TCP Client ve UDP de dahil olmak üzere hazır kullanım modlarını sağlar.
·10/100Mbps Ethernet
·Maksimum 230.4Kbps baudrate desteği
·Çok çeşitli çalışma modları (Real COM, TCP Server, TCP Client, UDP)
·DHCP, BootP, Static IP ve ARP desteği
·SNMP and e-posta uyarıları
·Çok küçük boyut (57 × 40 mm)
·Düşük güç tüketimi (1.5W)
ÜRÜN SİPARİŞ KODLARI :
|
NE-4100T |
10/100M Ethernet Network Enabler for serial(TTL) device, DIL package |
|
NE-4100T-T |
10/100M Ethernet Network Enabler for serial(TTL) device, DIL package, -40 to 75°C |
| • Form Factor | |
| Type | Drop-in module |
| Dimensions | 45 × 36 mm (1.77 x 1.42 in) |
| Weight | NE-4110S/4110A: 40 g NE-4120S/4120A/4100T: 20 g |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Connector | 26-pin dual-in-line |
| • Serial Interface | |
| Number of Ports | 2 |
| Serial Standards | • Port 1:TTL • Port 2:TTL console port |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
| Baudrate | 110 bps to 230.4 kbps |
| • Serial Signals | |
| TTL | • Port 1: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND • Port 2: TxD, RxD, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Digital I/O Pins | |
| GPIO | 4 programmable I/O pins |
| • Software | |
| Network Protocols | ICMP, ARP, IPv4, TCP, UDP, DHCP, Telnet, HTTP, SNMP V1/V2c, SMTP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Operation Modes | Real COM, TCP Server, TCP Client, UDP |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements | |
| Input Voltage | 5 VDC (±5%) |
| Power Consumption | 290 mA @ 5 VDC max. |
| • Standards and Certifications | |
| EMC | CE, FCC |
| EMI | EN 55022 Class B, FCC Part 15 Subpart B Class A |
| EMS | EN 55024, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8, EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | 288,173 hrs |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
