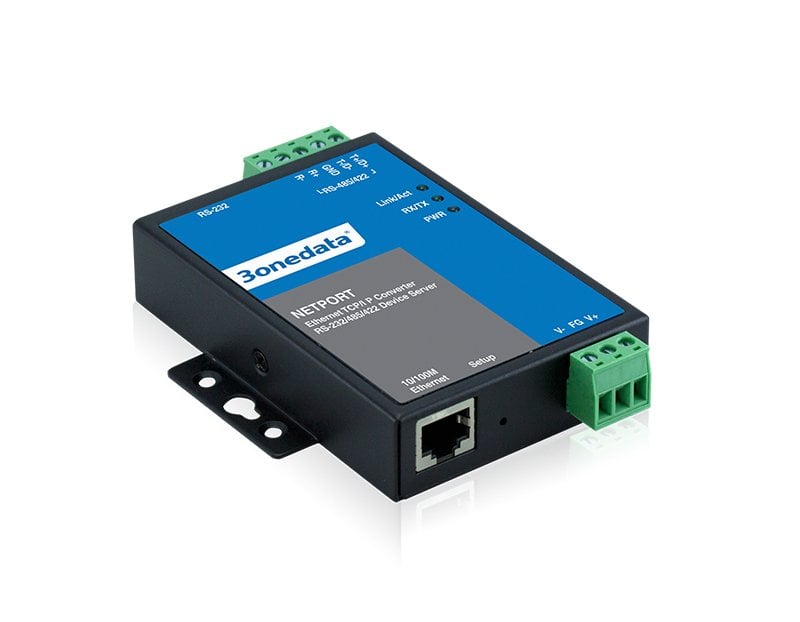

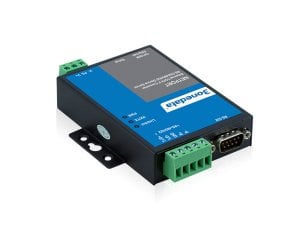

NP301
1-Port Serial Device Server
1*RS-232/422/485 + 1*10/100Base-T(X), single power supply 12-48VDC, wall-mounting
- 1xSeri ve 1x10/100Base-T(X) port
- TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server, Advanced UDP
- 9-48VDC
- -40~75℃ çalışma sıcaklık aralığı
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| 10/100BaseT(X) | : | 1 |
|
Ethernet Port |
Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface quantity: 1 Interface form: RJ45 Duplex mode: full/half duplex mode self-adaption Operating mode: 4 sessions, support TCP Server, TCP Client, UDP, TCP Auto, Advanced TCP Server and Advanced UDP
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 1 RS-232 or RS-485/422 serial port RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: RS-232, adopt DB9 male; RS-485/422, adopt 5 pins 5.08mm pitch terminal blocks Directional control: RS-485 direction adopts data flow automatic control technology Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points) Pull high/low resistor for RS-485: 4.7kΩ
|
| Configuration |
WEB configuration management, serial port AT command, Windows configuration tool
|
| Security |
Classification of User Permissions
|
|
Indicator
|
Power supply indicator, Ethernet port indicator, serial port indicator |
|
Power Requirement
|
9~48VDC, 3 pins 5.08mm pitch terminal blocks Support reverse polarity protection
|
|
Power Consumption |
No-load: 0.80W@12VDC Full-load: 0.84W@12VDC
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 240g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, Electro-static Discharge) ，Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT/B, Electrical Fast Transient/Burst), Level 3 Power supply: ±2kV Ethernet interface: ±1kV Serial port: ±1kV IEC 61000-4-5 (Surge), Level 2 Power supply: common mode ±2kV, differential mode ±1kV Ethernet interface: ±2kV Serial port: common mode ±1kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
