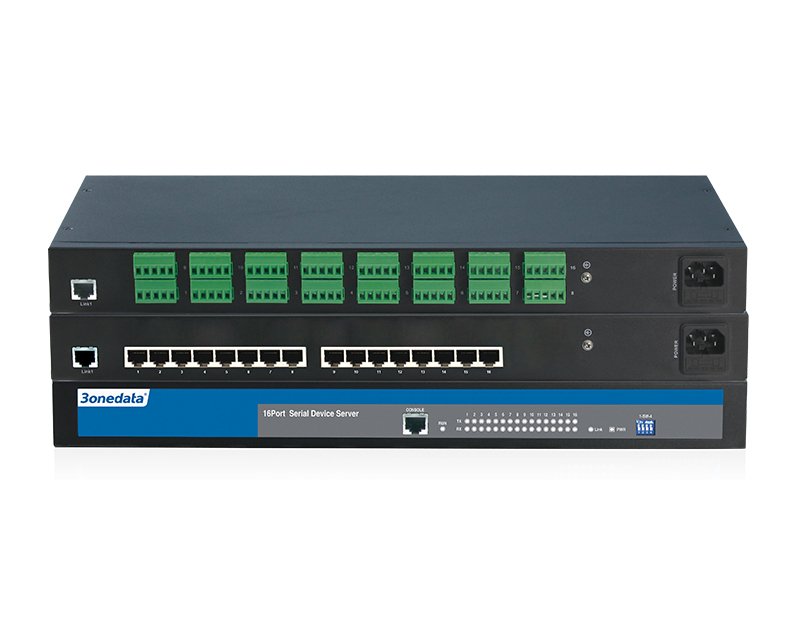

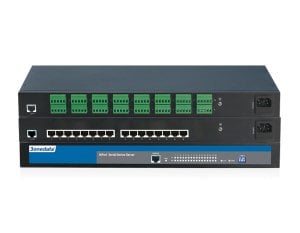

NP3016T-16DI(RS-485)
16-Port Serial Device Server
16*RS-422/485 + 1*10/100Base-T(X), single power supply 85~265VAC, 1U 19" rackmount
- 16 x Seri (RS-232, RS-422/485 veya RS-232/422/485) ve 1 ve 2 x 10/100Base-T(X) port
- Realcom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast
- 85-265VAC
- -25~55℃ çalışma sıcaklık aralığı
| NP3016T-16D(RS232) | 16*RS-232+1*10/100Base-T(X), single power supply 85~265VAC, 1U 19" rackmount |
| NP3016T-16DI(RS-485) | 16*RS-422/485+1*10/100Base-T(X), single power supply 85~265VAC, 1U 19" rackmount |
| NP3016T-16D(3IN1) | 16*RS-232/422/485+1*10/100Base-T(X), single power supply 85~265VAC, 1U 19" rackmount |
| NP3116T-16D(3IN1) | 16*RS-232/422/485+2*10/100Base-T(X) (dual IPs and MACs), dual power supply 85~265VAC, 1U 19" rackmount |
| Çalışma Sıcaklığı | : | -25/+55C |
| Toplam Port Sayısı | : | 16 |
| RS-422/485 | : | 16 |
| Konnektör Tipi | : | Terminal Block |
| 10/100BaseT(X) | : | 1 |
|
Ethernet Port |
Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface form: RJ45 Interface quantity: 1 or 2 Duplex mode: full/half duplex mode self-adaption Operating mode: 4 sessions, support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast operating modes
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 16 RS-485/422 or 3IN1 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: RS-485/422 serial port with isolation, adopt 5 pins 5.08mm pitch terminal blocks 3IN1 serial port, adopt RJ45 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points) Transmission distance: RS-232, 15m; RS-485/422, 1200m Pull high/low resistor for RS-485: 4.7kΩ Electromagnetic isolation strength: RS-485/422 serial port (terminal block), 1.2kVAC
|
| Configuration |
WEB configuration management, TELNET configuration, Windows configuration tool
|
| Security |
Classification of User Permissions, IP address filtering, MAC address filtering, WEB console, TELNET console
|
|
Indicator
|
Power supply indicator, Ethernet port indicator, serial port indicator, running indicator |
|
Power Requirement
|
Power supply: 85~265VAC Single power supply: NP3016T-16D(RS-232), NP3016T-16D(3IN1), NP3016T-16DI(RS-485) Dual power supply: NP3116T-16D(3IN1)
|
|
Power Consumption |
NP3016T-16D(RS-232) No-load: 6.7W@220VAC Full-load: 7.3W@220VAC NP3016T-16DI(RS-485) No-load: 7.1W@220VAC Full-load: 7.9W@220VAC NP3016T-16D(3IN1) No-load: 6.7W@220VAC Full-load: 7.3W@220VAC NP3116T-16D(3IN1) No-load: 5.4W@220VAC Full-load: 5.7W@220VAC
|
|
Environmental Limit |
NP3016T-16DI(RS-485) Operating temperature: -25~55℃ Storage temperature: -30~85℃ Relative humidity: 5%～95%（no condensation） NP3016T-16D(RS-232), NP3016T-16D(3IN1), NP3116T-16D(3IN1) Operating temperature: -25~55℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm Weight: ≤2500g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, Electro-static Discharge) ，Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT/B, Electrical Fast Transient/Burst), Level 3 Power supply: ±2kV Signal: ±2kV IEC 61000-4-5 (Surge), Level 2 Power supply: common mode ±1kV, differential mode ±1kV Signal: common mode ±1kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
