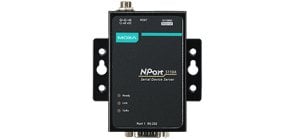

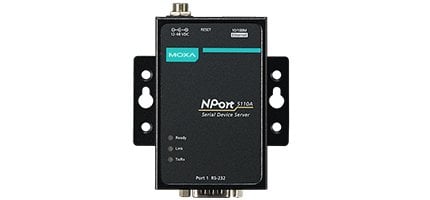

NPort 5110A-T
1-port RS-232 device server
NPort® 5100A cihaz sunucuları, seri cihazları anında ağa hazır hale getirmek ve bilgisayar yazılımınıza ağdaki herhangi bir yerden seri cihazlara doğrudan erişim sağlamak için tasarlanmıştır. NPort® 5100A cihaz sunucuları, basit, güvenilir seri / Ethernet çözümlerine olanak tanımak için son derece yalın, dayanıklı ve kullanıcı dostu bir yapıya sahiptir.
- Yalnız 1 wattlık güç tüketimi
- 3 Aşamada hızlı web tabanlı konfigürasyon
- Seri, Ethernet ve güç hattı elektriksel dalgalanmalara karşı korumalı
- COM port gruplama ve UDP Multicast uygulamaları
- Güvenli kurulum için vidalı konnektörler
- Windows ve Linux için Real COM/TTY sürücüleri
- Standard TCP/IP arayüzleri ve çok yönlü TCP and UDP çalışma modları
- 8 Adete kadar TCP host desteği
ÜRÜN SİPARİŞ KODLARI :
|
1-port RS-232 device server, 0 to 60°C operating temperature |
|
|
NPort 5110A-T |
1-port RS-232 device server, -40 to 75°C operating temperature |
|
1-port RS-422/485 device server, 0 to 60°C operating temperature |
|
|
1-port RS-422/485 device server, -40 to 75°C operating temperature |
|
|
1-port RS-232/422/485 device server, 0 to 60°C operating temperature |
|
|
1-port RS-232/422/485 device server, -40 to 75°C operating temperature |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 1 |
| RS-232 | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | NPort 5110A: RS-232 NPort 5130A: RS-422/485 NPort 5150A: RS-232/422/485 |
| Connector | DB9 male |
| Serial Line Protection | Level 1 surge, EN 61000-4-5 |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP |
| Configuration Options | Web Console (with new Quick Setup), Serial Console (NPort 5110A/5150A only), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 340 g (0.75 lb) |
| Dimensions | Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 5110A: 82.5 mA @ 12 VDC NPort 5130A: 89.1 mA @ 12 VDC NPort 5150A: 92.4 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | 2,231,530 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
