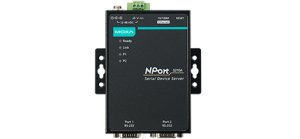

| • Ethernet Interface |
| Number of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
8-pin RJ45 |
| Magnetic Isolation Protection |
1.5 kV built-in |
| Ethernet Line Protection |
EN 61000-4-5 (Surge) Level 2 |
| • Serial Interface |
| Number of Ports |
2 |
| Serial Standards |

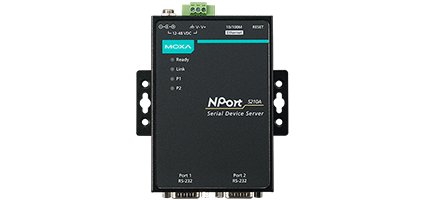

NPort 5210A: RS-232
NPort 5230A: RS-422/485
NPort 5250A: RS-232/422/485 |
| Connector |
NPort 5210A/5250A: DB9 male
NPort 5230A: Terminal Block (5 pins per port) |
| Serial Line Protection |
EN 61000-4-5 (Surge) Level 1 |
| RS-485 Data Direction Control |
ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Software |
| Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP |
| Configuration Options |
Web Console (with new Quick Setup), Serial Console (NPort 5210A/5250A only), Telnet Console, Windows Utility |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics |
| Housing |
Metal |
| Weight |
340 g (0.75 lb) |
| Dimensions |
Without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
With ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC |
| Input Current |
119 mA @ 12 VDC |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| EMC |
EN 55032/24 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs |
| • Reliability |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) |
| Time |
847,750 hrs |
| Standard |
Telcordia (Bellcore) Standard TR/SR |
| • Warranty |
| Warranty Period |
5 years |
| Details |
See www.moxa.com/warranty |
|
