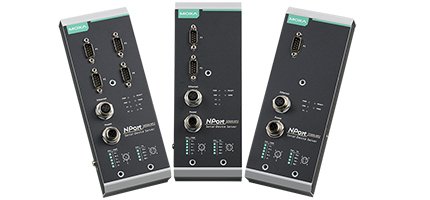

NPort 5450AI-M12-CT
Railway 4-port RS-232/422/485 serial device servers
- Speedy 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
- Complies with all EN 50155 mandatory test items*
- M12 connector and IP40 metal housing
- 2 kV isolation for serial signals
|
1-port RS-232/422/485 device server with M12 connector, M12 power input, -25 to 55°C operating temperature |
|
|
1-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -40 to 75°C operating temperature |
|
|
1-port RS-232/422/485 device server with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating |
|
|
1-port RS-232/422/485 device server with M12 connector, M12 power input, conformal coating, -40 to 75°C operating temperature |
|
|
2-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -25 to 55°C operating temperature |
|
|
2-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -40 to 75°C operating temperature |
|
|
2-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating |
|
|
2-port RS-232/422/485 device server with M12 connector, M12 power input, conformal coating, -40 to 75°C operating temperature |
|
|
4-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -25 to 55°C operating temperature |
|
|
4-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -40 to 75°C operating temperature |
|
|
4-port RS-232/422/485 device server, 1 10/100BaseT(X)port with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating |
|
|
4-port RS-232/422/485 device server with M12 connector, M12 power input, conformal coating, -40 to 75°C operating temperature |
|
DIN Rail Mount Kit, 1 pcs of plates (174x60x12.8mm), 3 screws (PMS M3X30mm), 3 screws (PMS M3X4mm) |
|
Industrial network management software with a license for 50 nodes (by IP address) |
|
|
Industrial network management software with a license for 100 nodes (by IP address) |
|
|
Industrial network management software with a license for 250 nodes (by IP address) |
|
|
Industrial network management software with a license for 500 nodes (by IP address) |
|
|
Industrial network management software with a license for 1000 nodes (by IP address) |
|
|
Industrial network management software with a license for 2000 nodes (by IP address) |
| Çalışma Sıcaklığı | : | -25/+55C |
| Toplam Port Sayısı | : | 4 |
| Konnektör Tipi | : | M12 |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | M12 D-coded 4-pin female connector |
| • Serial Interface | |
| Number of Ports | 1, 2, 4 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP, LLDP |
| Configuration Options | Web Console (with new Quick Setup), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Physical Characteristics | |
| Housing | Metal, IP40 protection |
| Weight | 686 g (1.51 lb) |
| Dimensions | 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Note | Compliant with EN 50155 on 24/48 VDC |
| Input Current | NPort 5150AI-M12: 310 mA @ 12 VDC NPort 5250AI-M12: 360 mA @ 12 VDC NPort 5450AI-M12: 440 mA @ 12 VDC |
| Connector | M12 5-pin male connector |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4 |
| Rail Traffic | EN 50155*, EN 50121-4 |
| *This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here | www.moxa.com/doc/specs/EN_50155_Compliance.pdf |
| Vibration | IEC 60068-2-6 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5150AI-M12: 789,341 hrs NPort 5250AI-M12: 639,622 hrs NPort 5450AI-M12: 467,777 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
