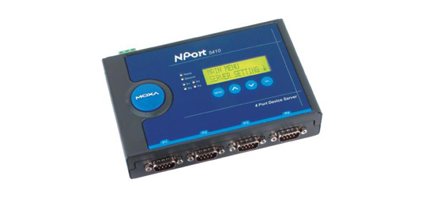

NPort 5450I-T
4-port RS-232/422/485 serial device servers
NPort® 5400 aygıt sunucuları, yalnızca basit bir yapılandırmayla dört seri aygıtı Ethernet ağına rahatça ve şeffaf bir şekilde bağlayabileceğiniz bir çözümdür . Seri ve Ethernet arabirimleri arasındaki veri iletimi iki yönlüdür. Seri aygıtlarınızın yönetimini merkezileştirebilir ve yönetim ana bilgisayarlarının ağ üzerinden dağıtımını yapabilirsiniz.
- 10/100M auto-sensing Ethernet
- 4 serial ports supporting RS-232/422/485
- Socket modes: TCP server/TCP client/UDP/Real COM
- Configure via Telnet/Web/Windows utility
- SNMP MIB-II for network management
- 2 kV isolation protection for NPort 5430I/5450I/5450I-T
- -40 to 75°C operating temperature range (T model)
ÜRÜN SİPARİŞ KODLARI :
|
4-Port RS-232 Serial Device Server |
|
|
4-Port RS-232 Serial Device Server with adapter |
|
|
4-port RS-422/485 device server |
|
|
4-port RS-422/485 device server with adapter |
|
|
4-port RS-422/485 device server with 2 KV isolation protection |
|
|
4-port RS-422/485 device server with 2 KV isolation protection (with adapter) |
|
|
4-port RS-232/422/485 device server |
|
|
4-port RS-232/422/485 device server with adapter |
|
|
4-port RS-232/422/485 device server, -40 to 75°C operating temperature (without LCM) |
|
|
4-port RS-232/422/485 device server with 2 KV isolation protection |
|
|
4-port RS-232/422/485 device server with 2 KV isolation protection (with adapter) |
|
|
NPort 5450I-T |
4-port RS-232/422/485 device server with 2KV isolation protection, -40 to 75°C operating temperature (without LCM |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 4 |
| RS-232/422/485 | : | 4 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | NPort 5410: RS-232 NPort 5430/5430I: RS-422/485 (software selectable) NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable) |
| Connector | NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male NPort 5430/5430I: Terminal block |
| Serial Line Protection | 2 kV isolation protection (NPort 5430I/5450I/5450I-T) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Mini Screen with Push Buttons (for standard temp. models) | |
| LCD Panel | Liquid Crystal Display on the case |
| Push Buttons | Four push buttons for convenient on-site configuration |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 740 g (1.63 lb) |
| Dimensions | Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in) With mounting kit: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 5410: 350 mA @ 12 VDC NPort 5430: 320 mA @ 12 VDC NPort 5430I: 530 mA @ 12 VDC NPort 5450/5450-T: 350 mA @ 12 VDC NPort 5450I/5450I-T: 554 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
| Marine | DNV (standard temp. models only) |
| Medical | EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only) |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5410: 310,331 hrs NPort 5430/5430I: 265,650 hrs NPort 5450/5450I: 206,903 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
