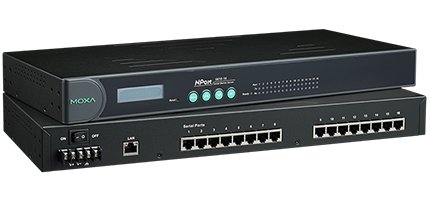

NPort 5630-8
8-port RS-232/422/485 rackmount serial device servers
NPort® 5600 raf tipi serisiyle, yalnızca mevcut donanım yatırımınızı korumakla kalmaz, aynı zamanda seri cihazlarınızın yönetimini merkezileştirerek ve ağ üzerinden yönetim sunucularını dağıtarak gelecekteki ağ genişlemesine de izin verirsiniz. NPort® 5600 ile bir Ethernet ağına en fazla 16 seri cihaz bağlamak için sadece temel konfigürasyona ihtiyaç vardır. NPort® 5600 cihaz sunucuları, ön paneldeki seri bağlantı noktaları için Tx / Rx LED'leri ve arka paneldeki 8 veya 16 RJ45 seri bağlantı noktası konektörü ile birlikte gelir. Bu, NPort® 5600 cihaz sunucularını standart 19 inç raf montajı için uygun hale getirerek işletim, bakım ve yönetim görevlerini basitleştirmenizi sağlar.
- 8 or 16 serial ports supporting RS-232/422/485
- Standard 19-inch rackmount size
- 10/100M auto-sensing Ethernet
- Easy IP address configuration with LCD panel (excluding wide temperature models)
- Configure via Telnet/Web/Windows utility
- Socket modes: TCP server/TCP client/UDP/Real COM
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
ÜRÜN SİPARİŞ KODLARI :
|
8-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input |
|
|
8-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input |
|
|
16-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input |
|
|
16-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input |
|
|
8-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input |
|
|
16-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 8 |
| RS-422/485 | : | 8 |
| Konnektör Tipi | : | RJ45 |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Optical Fiber Interface (for -M-SC and -S-SC) | |
|
|
|
| • Serial Interface | |
| Number of Ports | 8 or 16 |
| Serial Standards | NPort 5610: RS-232 NPort 5630: RS-422/485 NPort 5650: RS-232/422/485 |
| Connector | RJ45 (8 pins) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ (NPort 5650-8/16) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217 |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Mini Screen with Push Buttons (for standard temp. models) | |
| LCD Panel | Liquid Crystal Display on the case |
| Push Buttons | Four push buttons for convenient on-site configuration |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort 5610-8: 2,290 g (5.05 lb) NPort 5610-8-48V: 3,160 g (6.97 lb) NPort 5650-8-S-SC: 2,440 g (5.38 lb) NPort 5650-8-M-SC: 2,380 g (5.25 lb) NPort 5650-8: 2,310 g (5.09 lb) NPort 5610-16: 2,490 g (5.49 lb) NPort 5610-16-48V: 3,260 g (7.19 lb) NPor |
| Dimensions | Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | Standard Models: -20 to 70°C (-4 to 158°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | NPort 5610/5630/5650: 100 to 240 VAC, 47 to 63 Hz NPort 5610-48V: ±48 VDC (20 to 72 VDC, -20 to -72 VDC) NPort 5650-HV: 110 VDC (88 to 300 VDC) |
| Input Current | NPort 5610-8/16: 141 mA @ 100 VAC, 47 to 63 Hz NPort 5630-8/16: 152 mA @ 100 VAC, 47 to 63 Hz NPort 5610-8/16-48V: 135 mA @ 48 VDC NPort 5650-8/16: 158 mA @ 100 VAC, 47 to 63 Hz NPort 5650-8/16-S-SC: 164 mA @ 100 VAC, 47 to 63 Hz NPort 5650- |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | NPort 5650-8/16 Series: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Si |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5610-8: 877,888 hrs NPort 5610-16: 666,105 hrs NPort 5610-8-48V: 870,961 NPort 5630-8: 765,449 hrs NPort 5630-16: 473,748 hrs NPort 5650-8: 692,010 hrs NPort 5650-16: 473,748 hrs NPort 5650-8-S-SC: 678,053 hrs NPort 5650-8-M-SC: 678,053 hrs NPo |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
