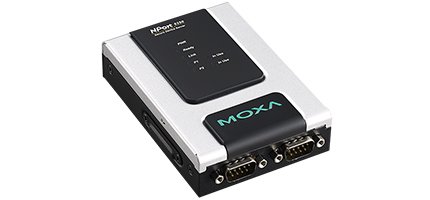

NPort 6250-M-SC-T
2-port RS-232/422/485 secure terminal servers
NPort® 6250aygıt sunucuları 2-port içerir ve SSL ve SSH protokollerini kullanır. 10/100BaseT (X) bakır Ethernet veya 100BaseT (X) fiber seçenekleri mevcuttur. Single-Mode ve multi-mod fiber desteği vardır.
- Real COM, TCP Sunucusu, TCP İstemcisi, Pair Bağlantı, Terminal ve Ters Terminal için güvenli çalışma modları
- 10/100BaseT(X) veya 100BaseFX seçeneği
- HTTPS ve SSH ile gelişmiş uzaktan yapılandırma
- Ethernet çevrimdışı olduğunda seri verileri depolamak için port arabellekleri
- IPv6'yı desteği
- IEC 62443 uyumlu güvenlik özellikleri
ÜRÜN SİPARİŞ KODLARI :
|
2 ports RS-232/422/485 secure device server, 12-48V, w/ adapter |
|
|
2 Port Terminal Server, 3 in 1, 10/100M Ethernet, 12-48 VDC, -40 to 75°C |
|
|
2 ports RS-232/422/485 secure device server, single mode Ethernet with SC connector, 12-48V, w/ adapter |
|
|
2 Port Terminal Server, 3 in 1, 100FX Multi Mode Fiber, SC Connector, 12-48VDC, -40 to 75°C |
|
|
2 ports RS-232/422/485 secure device server, single mode Ethernet with SC connector, 12-48V, w/ adapter |
|
|
2 Port Terminal Server, 3 in 1, 100FX Single Mode Fiber, SC Connector, 12-48VDC, -40 to 75°C |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232/422/485 | : | 2 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation | 1.5 kV built-in |
| • Optical Fiber Interface (NPort 6250-S-SC/6250-M-SC) | |
| • Serial Interface | |
| Number of Ports | 2 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Console Port | Serial port 1 doubles as RS-232 console port |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps (supports nonstandard baudrates) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Memory Expansion Slot | |
| Slot Type | SD slot (supports up to 2 GB) |
| • Software | |
| Network Protocols | ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE, HTTPS |
| Security Protocols | SSLv3, TLSv1.0/1.1/1.2 |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Management | SNMP MIB-II |
| IP Routing | Static, RIP-I, RIP-II |
| • Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled |
| Secure | Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH |
| • Applications | |
| Terminal Sessions | 8 sessions per port |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 730 g (1.61 lb) |
| Dimensions | Without ears: 77 x 111 x 29 mm (3.30 x 4.37 x 1.1 in) With ears: 89 x 111 x 29 mm (3.50 x 4.37 x 1.1 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 6250: 333 mA @ 12 VDC NPort 6250-M-SC: 428 mA @ 12 VDC NPort 6250-S-SC: 376 mA @ 12 VDC |
| Power Line Protection | 1 kV burst (EN 61000-4-4: EFT/B), 1 kV surge (EN 61000-4-5) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
| Freefall | IEC-68-2-6, IEC-68-2-34, IEC-68-2-32 |
| Vibration | IEC-68-2-6, IEC-68-2-34 |
| Green Product | RoHS, CRoHS, WEEE |
| Transportation | NEMA TS2 (excluding fiber models) |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 6250: 1,947,486 hrs NPort 6250 Multi-mode fiber: 1,092,794 hrs NPort 6250 Single-mode fiber: 1,477,682 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
