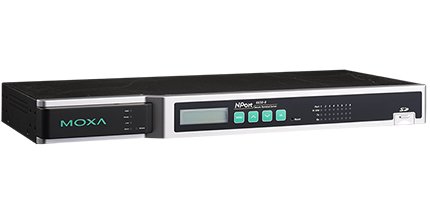

NPort 6610-8
8-port RS-232/422/485 rackmount secure terminal servers
- Up to 32 ports for high-density environments
- Nonstandard baudrates supported with high precision
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
- Modular design for scalability
- DES/3DES/AES for highly secure data transmissions
- Universal high-voltage ranges: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
- Security features based on IEC 62443
|
8-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
8-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
16-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
16-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
32-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
32-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
8-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
8-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input |
|
|
8-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature |
|
|
8-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
16-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
16-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
16-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input |
|
|
16-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature |
|
|
32-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
32-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
32-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 8 |
| RS-232 | : | 8 |
| Konnektör Tipi | : | RJ45 |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation | 1.5 kV built-in |
| • Optical Fiber Interface (with network module) | |
| • Serial Interface | |
| Number of Ports | 8, 16, or 32 |
| Serial Standards | NPort 6610: RS-232 NPort 6650: RS-232/422/485 |
| Connector | 8-pin RJ45 |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Console Port | Dedicated RS-232 console port on rear panel (8-pin RJ45) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps (supports nonstandard baudrates) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Memory Expansion Slot | |
| Slot Type | SD slot (supports up to 2 GB) |
| • Software | |
| Network Protocols | ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE, HTTPS |
| Security Protocols | SSLv3, TLSv1.0/1.1/1.2 |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Management | SNMP MIB-II |
| IP Routing | Static, RIP-I, RIP-II |
| • Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled |
| Secure | Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH |
| • Applications | |
| Terminal Sessions | 8 sessions per port |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort 6600-8: 3,460 g (7.63 lb) NPort 6600-16: 3,580 g (7.89 lb) NPort 6600-32: 3,600 g (7.94 lb) |
| Dimensions | Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in) With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | Standard Models: -40 to 75°C (-40 to 167°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | AC Models: 100 to 240 VAC DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC) |
| Input Current | AC Models: 140 mA @ 100 VAC (8 ports) 192 mA @ 100 VAC (16 ports) 285 mA @ 100 VAC (32 ports) DC Models: 293 mA @ 48 VDC 200 mA @ 88 VDC |
| Alarm Contact | Relay output with current-carrying capacity of 1 A @ 24 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | NPort 6600-8/16/32: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m |
| Freefall | IEC-68-2-6, IEC-68-2-34, IEC-68-2-32 |
| Vibration | IEC-68-2-6, IEC-68-2-34 |
| Green Product | RoHS, CRoHS, WEEE |
| Transportation | NEMA TS2 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 6610-8: 135,891 hrs NPort 6610-16: 102,373 hrs NPort 6610-32: 68,707 hrs NPort 6650-8: 636,600 hrs NPort 6650-16: 439,673 hrs NPort 6650-32: 310,078 hrs NPort 6650-8-HV-T: 501,171 hrs NPort 6650-16-HV-T: 380,006 hrs NPort 6650-32-HV-T: 290,914 |
| Standard | Telcordia (Bellcore) Standard |
| • Warranty | |
| Warranty Period | 5 years |
