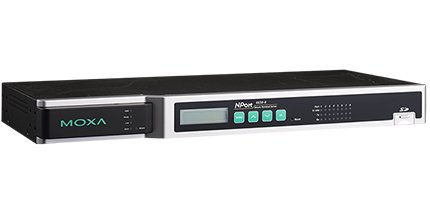

NPort 6610-8-48V
MOXA

NPort 6610-8-48V

Stokta 0 Adet Var
1.297,00 EUR + KDV
Kategori
Terminal Sunucular , Tüm Ürünler
Datasheet
  Döküman indir
Ürün Bilgisi

NPort 6610-8-48V

8-port RS-232/422/485 rackmount secure terminal servers




NPort® 6600 serisi güvenli cihaz sunucuları, küçük bir alana yerleştirilmiş çok sayıda seri cihaz kullanan uygulamalar için doğru seçimdir. Kabul edilemez güvenlik ihlallerine yönelik olarak NPort® 6600 serisi, DES, 3DES ve AES şifreleme algoritmalarının desteğiyle veri iletim bütünlüğünü sağlar. Herhangi bir tipteki seri cihazlar NPort® 6600'e bağlanabilir ve NPort® üzerindeki her seri port RS-232, RS-422 veya RS-485 iletimi için bağımsız olarak konfigüre edilebilir.

NPort® 6600, konfigürasyon için yerleşik bir LCD panele sahiptir. Panel sunucu adını, seri numarasını ve IP adresini görüntüler ve IP adresi, ağ maskesi ve ağ geçidi adresi gibi cihaz sunucusunun yapılandırma parametrelerinden herhangi biri kolayca ve hızlı bir şekilde güncellenebilir.


Not: LCD paneli sadece standart sıcaklık modelleriyle kullanılabilir.


  • Up to 32 ports for high-density environments
  • Nonstandard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  • Modular design for scalability
  • DES/3DES/AES for highly secure data transmissions
  • Universal high-voltage ranges: 100 to 240 VAC or 88 to 300 VDC
  • Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
  • Security features based on IEC 62443



ÜRÜN SİPARİŞ KODLARI :

NPort 6610-8

8-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input

NPort 6610-8-48V

8-port RS-232 to Ethernet Secure Device Server, ±48 VDC input

NPort 6610-16

16-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input

NPort 6610-16-48V

16-port RS-232 to Ethernet Secure Device Server, ±48 VDC input

NPort 6610-32

32-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input

NPort 6610-32-48V

32-port RS-232 to Ethernet Secure Device Server, ±48 VDC input

NPort 6650-8

8-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input

NPort 6650-8-T

8-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input

NPort 6650-8-HV-T

8-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature

NPort 6650-8-48V

8-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input

NPort 6650-16

16-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input

NPort 6650-16-48V

16-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input

NPort 6650-16-T

16-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input

NPort 6650-16-HV-T

16-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature

NPort 6650-32

32-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input

NPort 6650-32-48V

32-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input

NPort 6650-32-HV-T

32-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature
Çalışma Sıcaklığı : 0/+55C
Toplam Port Sayısı : 8
RS-232 : 8
Konnektör Tipi : RJ45
• Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation 1.5 kV built-in
• Optical Fiber Interface (with network module)
• Serial Interface
Number of Ports 8, 16, or 32
Serial Standards NPort 6610: RS-232
NPort 6650: RS-232/422/485
Connector 8-pin RJ45
RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
Console Port Dedicated RS-232 console port on rear panel (8-pin RJ45)
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Baudrate 50 bps to 921.6 kbps (supports nonstandard baudrates)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
Terminator for RS-485 120 Ω
• Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
• Memory Expansion Slot
Slot Type SD slot (supports up to 2 GB)
• Software
Network Protocols ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE, HTTPS
Security Protocols SSLv3, TLSv1.0/1.1/1.2
Configuration Options Web Console, Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x, 4.x
Android API Android 3.1.x and later
Management SNMP MIB-II
IP Routing Static, RIP-I, RIP-II
• Operation Modes
Standard Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
• Applications
Terminal Sessions 8 sessions per port
• Physical Characteristics
Housing Metal
Weight NPort 6600-8: 3,460 g (7.63 lb)
NPort 6600-16: 3,580 g (7.89 lb)
NPort 6600-32: 3,600 g (7.94 lb)
Dimensions Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
• Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature Standard Models: -40 to 75°C (-40 to 167°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage AC Models: 100 to 240 VAC
DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC)
Input Current AC Models:
140 mA @ 100 VAC (8 ports)
192 mA @ 100 VAC (16 ports)
285 mA @ 100 VAC (32 ports)
DC Models:
293 mA @ 48 VDC
200 mA @ 88 VDC
Alarm Contact Relay output with current-carrying capacity of 1 A @ 24 VDC
• Standards and Certifications
Safety UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS NPort 6600-8/16/32:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
Freefall IEC-68-2-6, IEC-68-2-34, IEC-68-2-32
Vibration IEC-68-2-6, IEC-68-2-34
Green Product RoHS, CRoHS, WEEE
Transportation NEMA TS2
• Reliability
Alert Tools Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger Built-in WDT (watchdog timer)
• MTBF (mean time between failures)
Time NPort 6610-8: 135,891 hrs
NPort 6610-16: 102,373 hrs
NPort 6610-32: 68,707 hrs
NPort 6650-8: 636,600 hrs
NPort 6650-16: 439,673 hrs
NPort 6650-32: 310,078 hrs
NPort 6650-8-HV-T: 501,171 hrs
NPort 6650-16-HV-T: 380,006 hrs
NPort 6650-32-HV-T: 290,914
Standard Telcordia (Bellcore) Standard
• Warranty
Warranty Period 5 years
