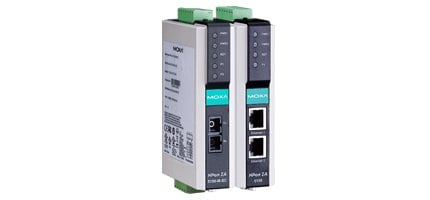

NPort IA-5250-T
2-port serial device servers for industrial automation
NPort® IA cihaz sunucuları, endüstriyel otomasyon uygulamaları için kolay ve güvenilir seri-ethernet bağlantısı sağlar. Aygıt sunucuları herhangi bir seri aygıtı bir ethernet ağına bağlayabilir ve ağ yazılımı ile uyumluluğundan emin olmak için TCP Server, TCP İstemcisi ve UDP dahil çeşitli bağlantı noktası işlem modlarını destekler. NPort® IA cihaz sunucularının sağlam güvenilirliği, PLC'ler, sensörler, sayaçlar, motorlar, sürücüler, barkod okuyucular ve operatör ekranları gibi RS-232/422/485 seri cihazlara ağ erişimi kurmak için ideal bir seçimdir. Tüm modeller DIN rayına monte edilebilen kompakt, sağlam bir muhafazaya yerleştirilmiştir.
- Socket modes: TCP server/TCP client/UDP
- Patented ADDC® (automatic data direction control) for 2-wire and 4-wire RS-485
- Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
- Redundant DC power inputs
- Warning by relay output and e-mail
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
- IP30-rated housing
ÜRÜN SİPARİŞ KODLARI :
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X) (RJ45) |
|
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X) (RJ45), -40~75℃ |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X) (RJ45) |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X) (RJ45), -40~75℃ |
|
|
2-port RS-232/422/485 to 2-ports 10/100BaseT(X), 0 to 55°C, IECEx |
|
|
2-port RS-232/422/485 to 2-ports 10/100BaseT(X), -40 to 75°C, IECEx |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232/422/485 | : | 2 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface (NPort IA5150/5150I/5250) | |
| Number of Ports | 2 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Optical Fiber Interface (-M-SC and -S-SC models) | |
|
|
|
| • Serial Interface | |
| Number of Ports | NPort IA5150: 1 NPort IA5250: 2 |
| Serial Standards | RS-232/422/485 |
| Connector | NPort IA5150: DB9 male for RS-232, terminal block for RS-422/485 NPort IA5250: DB9 male for RS-232/422/485 |
| Serial Line Protection | 2 kV isolation protection (NPort IA5150I, NPort 5150I-M-SC, NPort 5150I-S-SC) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Weight | NPort IA5150: 360 g (0.79 lb) NPort IA5250: 380 g (0.84 lb) |
| Dimensions | 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort IA5150: 238 mA @ 12 VDC NPort IA5150I: 257 mA @ 12 VDC NPort IA5250: 238 mA @ 12 VDC NPort IA5150-S-SC: 328 mA @ 12 VDC NPort IA5150I-S-SC: 333 mA @ 12 VDC NPort IA5150-M-SC: 315 mA @ 12 VDC NPort IA5150I-M-SC: 339 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx Zone 2 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Marine | DNV |
| Shock | IEC 60068-2-27 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Water and Dust Proof | IP30 |
| • MTBF (mean time between failures) | |
| Time | NPort IA5150 Series: 183,747 hrs NPort IA5150I Series: 195,614 hrs NPort IA5250 Series: 194,765 hrs |
| Standard | NPort IA5250I Series: Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
