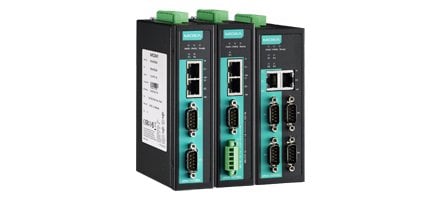

NPort IA5250A-T
2-port serial device servers for industrial automation
NPort IA5000A serisi cihaz sunucuları, PLC'ler, sensörler, sayaçlar, motorlar, sürücüler, barkod okuyucular ve operatör ekranları gibi endüstriyel otomasyonda kullanılan seri cihazların bağlantısı için tasarlanmıştır. NPort IA5000A serisi cihaz sunucuları son derece kullanıcı dostu olup, mümkün olan en basit ve güvenilir seri-ethernet çözümleri sunar.
NPort IA5000A serisi aygıt sunucuları 2 adet ethernet bağlantı noktasına sahiptir. Bir bağlantı noktası doğrudan ağa veya sunucuya bağlanır ve diğer bağlantı noktası başka bir NPort IA aygıt sunucusuna veya başka bir ethernet aygıtına bağlanabilir. Çift ethernet portları, her bir cihazı ayrı bir ethernet anahtarına bağlama ihtiyacını ortadan kaldırarak kablolama maliyetlerini azaltmaya yardımcı olur.
- Enhanced surge protection for LAN/serial/power
- 2 kV isolation for serial signals (isolation models)
- Screw-type terminal blocks for secure power/serial connections
- C1D2, ATEX, and IECEx certified for harsh industrial environments
- Cascading Ethernet ports for easy wiring
- Redundant DC power inputs
- Warning by relay output and email
- -40 to 75°C operating temperature range (T models)
ÜRÜN SİPARİŞ KODLARI :
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X), 1KV serial surge |
|
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X), 1KV serial surge, -40~75℃ |
|
|
2-port RS-232/422/485 device server with 8DIs and 4DOs, 0 to 60°C operating temperature. |
|
|
2-port RS-232/422/485 device server with 4DIs and 2DOs, 0 to 60°C operating temperature. |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X), 1KV serial surge |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X), 1KV serial surge, -40~75℃ |
|
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X), 1KV serial surge, IECEx Certification Approval |
|
|
2-port RS-232/422/485 serial device server, 10/100MBaseT(X), 1KV serial surge, -40~75℃, IECEx Certification Approval |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X), 1KV serial surge, IECEx Certification Approval |
|
|
2-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X), 1KV serial surge, -40~75℃, IECEx Certification Approval |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232/422/485 | : | 2 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 2 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Ethernet Line Protection | 1 kV (level 2) surge protection |
| • Serial Interface | |
| Number of Ports | NPort IA5150A: 1 NPort IA5250A: 2 NPort IA5450A: 4 |
| Serial Standards | RS-232/422/485 |
| Connector | NPort IA5150A: DB9 for RS-232, terminal block for RS-422/485 NPort IA5250A/IA5450A: DB9 for RS-232/422/485 |
| Serial Line Protection | • 2 kV isolation protection for isolation models • 1 kV (level 2) surge protection |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP, IGMP, ARP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort IA5150A: 475 g (1.05 lb) NPort IA5250A: 485 g (1.07 lb) NPort IA5450A: 560 g (1.23 lb) |
| Dimensions | NPort IA5150A/IA5250A: 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) NPort IA5450A: 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort IA5150A: 220 mA @ 12 VDC NPort IA5150AI: 225 mA @ 12 VDC NPort IA5250A: 250 mA @ 12 VDC NPort IA5250AI: 290 mA @ 12 VDC NPort IA5450A: 374 mA @ 12 VDC NPort IA5450AI: 512 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Class I Zone 2, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | 262,805 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
