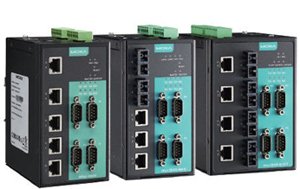

NPort S8455I-MM-SC
Combo switch / serial device server
NPort S8000 serisi, 4 adet RS-232/422/485 seri bağlantı içeren yönetilebilir ethernet anahtarı ile endüstriyel aygıt sunucusunu birleştirir ve bu sayede kolay kurulum, yönetim ve bakım olanağı sağlar. Dolayısı ile bir ethernet switch ve bir seri cihaz sunucusunu ayrı ayrı kullanmanız gerekmediğinden, kabinde boş alan bırakmanıza, genel güç tüketimini azaltmanıza ve maliyetleri düşürmenize olanak tanır.
NPort S8000 serisinin içeridiği yönetilebilir ethernet switch, QoS, IGMP-snooping/GMRP, VLAN, Port Trunking, SNMPv1/v2c/v3 ve IEEE 802.1X destekler.
- 4-port RS-232/422/485 serial device server
- 2 kV (DC) isolation protection for each serial port (S8455 only)
- Adjustable pull high/low resistor for RS-485 ports (S8455 only)
- Built-in managed Ethernet switch
- S8455I All Copper: Five Ethernet ports
- S8458: Four fiber Ethernet ports and four Ethernet ports
- Ethernet redundancy with Turbo Ring and Turbo Chain (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D) supported
- QoS, IGMP-snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3, RMON supported
- Surge protection for serial, power, and Ethernet
ÜRÜN SİPARİŞ KODLARI :
|
4 RS-232/422/485 ports, 5 10/100M Ethernet ports, 12 to 48 VDC, 2 kV isolation protection, 0 to 60°C operating temperature |
|
|
4 RS-232/422/485 ports, 5 10/100M Ethernet ports, 12 to 48 VDC, 2 kV isolation protection, -40 to 75°C operating temperature |
|
|
4 RS-232/422/485 ports, 3 10/100M Ethernet ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12-48 VDC, 0 to 60°C |
|
|
4 RS-232/422/485 ports, 3 10/100M Ethernet ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12-48 VDC, -40 to 75°C |
|
|
4 RS-232/422/485 ports, 3 10/100M Ethernet ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12-48 VDC, 0 to 60°C |
|
|
4 RS-232/422/485 ports, 3 10/100M Ethernet ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12-48 VDC, -40 to 75°C |
| Çalışma Sıcaklığı | : | 0/+60C |
| Toplam Port Sayısı | : | 4 |
| RS-232/422/485 | : | 4 |
| Konnektör Tipi | : | DB9 Male |
| • General Specifications | |
| • Port Summary | |
| Serial Ports | 4 RS-232/422/485 ports |
| Ethernet Switch Ports | NPort S8455I all copper: 5 RJ45 copper ports NPort S8455I fiber: 3 RJ45 copper ports and 2 fiber ports NPort S8458: 4 RJ45 copper ports and 4 fiber ports |
| Console Ports | 1 (8-pin RJ45 connector) |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort S8455I: 578 g (1.27 lb) NPort S8458: 1,105 g (2.44 lb) |
| Dimensions | NPort S8455I: 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in) NPort S8458: 93 x 144 x 125 mm (3.66 x 5.64 x 4.92 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: NPort S8455I-T: -40 to 75°C (-40 to 167°F) NPort S8458-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort S8455I: 935 mA @ 12 VDC NPort S8458: 940 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1 |
| EMC | EN 55022/24 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | NPort S8455I: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power 1 kV (4 kV for all copper models); Signal: 0.25 kV IEC 61000-4-6 CS: 150 kHz to |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D (S8455I all copper model only) |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| • | |
| • Device Server Specifications | |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| Serial Line Protection | 2 kV isolation protection (NPort S8455I only) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| Console Port | Dedicated RS-232 console port (8-pin RJ45) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web Console, Telnet Console, Serial Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Operation Modes | Real COM, TCP Server, TCP Client, UDP, RFC2217 |
| Management | SNMP MIB-II |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort S8455I Single-mode: 286,993 hrs NPort S8455I Multi-mode: 200, 951 hrs NPort S8455I All copper: 287,354 hrs NPort S8458: 163,624 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • | |
| • Ethernet Switch Specifications | |
| • Ethernet Interface | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authenti |
| Network Protocols | ICMP, IPv4, TCP, UDP, ARP, Telnet, DNS, HTTP, SMTP, SNTP, IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 82, BootP, TFTP, SNTP, SMTP, RARP, GMRP, LACP, RMON |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control interface |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of Available VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| • Optical Fiber Interface | |
|
|
|
| • Switch Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 2 relay outputs with current carrying capacity of 1A @ 24 VDC |
