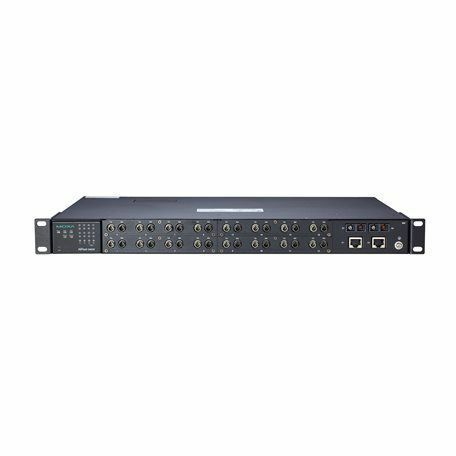

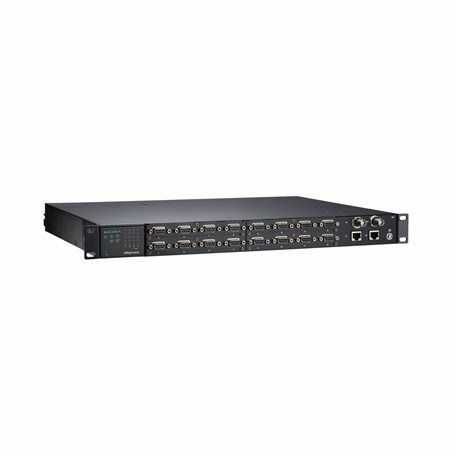

NPort S9650I-8-2HV-MSC-T
8-port, 3-in-1 rugged device server, 2x10/100M RJ45 1588v2, 2xFiber multi-SC, 110/220 VDC/VAC, -40 to 85°C
NPort S9650I Serisi 8 ve 16 portlu RS-232/422/485 aygıt sunucuları, elektrik trafo merkezlerinde bulunan zorlu çevre koşulları için özel olarak tasarlanmıştır. Hem fiber hem de kablolu Ethernet bağlantı noktalarının desteklenmesiyle, aygıt sunucusu ve Ethernet anahtarının birleşimi, kullanıcılara NPort S9650I'nin yanı sıra bağlı seri aygıtları da kolayca kurma, yönetme ve bakımını yapma olanağı sağlar.
Zorlu Trafo Merkezi Ortamları için Elektromanyetik Uyumluluk
NPort S9650I Serisi, elektrik trafo merkezlerinde ve endüstriyel otomasyon uygulamalarında karşılaşılan güç dalgalanmaları ve EMI türlerinden kaynaklanan hasarları önlemek için yüksek düzeyde aşırı gerilim korumasını destekler. -40/+85°C çalışma sıcaklığı aralığı ve galvanizli çelik muhafazayla birlikte NPort S9650I, çok çeşitli endüstriyel ortamlar için uygundur.
- 8/16 bağlantı noktalı RS-232/422/485 seri arayüz
- DNP3 ve Modbus protokollerini destekler
- Turbo Ring/Chain ve RSTP/STP destekli Ethernet yedekliliği
- Windows ve Linux için gerçek COM/TTY sürücüleri
- IEC 61850-3, IEEE 1613 (güç trafo merkezleri) uyumlu
- IEEE 1588v2 ve IRIG-B zaman senkronizasyon fonksiyonları
- IEC 61850 MMS protokolünü destekler
- IEC 62443/NERC CIP'ye dayalı güvenlik özellikleri
- -40 ila 85°C geniş çalışma sıcaklığı
| Çalışma Sıcaklığı | : | -40/+85C |
| RS-232/422/485 | : | 8 |
| 10/100BaseT(X) | : | 2 |
| 100BaseFX | : | 2 |
Input/Output Interface
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
Ethernet Interface
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
NPort S9650I-E Series: 4 RJ45 ports
NPort S9650I-MSC Series: 2 RJ45 ports
NPort S9650I-SSC Series: 2 RJ45 ports
NPort S9650I-IRIG Series: 2 RJ45 ports
100BaseFX Ports (multi-mode SC connector)
NPort S9650I-MSC Series: 2 multi-mode SC ports
100BaseFX Ports (single-mode SC connector)
NPort S9650I-SSC Series: 2 single-mode SC ports
Magnetic Isolation Protection
1.5 kV (built-in)
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
IGMP Groups 256
Max. No. of VLANs 64
Priority Queues 4
VLAN ID Range VID 1 to 4094
Ethernet Software Features
Ethernet Software Features
Configuration Options
Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Command Line Interface (CLI) through Serial/Telnet/SSH
Management
DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console
Filter
GMRP, GVRP, IGMP v1/v2
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
Android 3.1.x and later
Industrial Protocols
Modbus TCP Server (Slave), DNP3 TCP Outstation
Time Management
NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
MIB
Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
Security
HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
IRIG-B Interface
IRIG-B Interface
PWM/PPS Output, BNC Connector
NPort S9650I-IRIG Series: 1
PWM/PPS Output, DB9 Female
NPort S9650I-8B-2HV-IRIG-T: 8
NPort S9650I-16B-2HV-IRIG-T: 16
PWM Input, BNC Connector
NPort S9650I-IRIG Series: 1
Serial Interface
Serial Interface
Connector
NPort S9650I-8/-16 Series: DB9 male
NPort S9650I-8B/-16B Series: DB9 female
NPort S9650I-8F/-16F Series: Multi-mode fiber ST connector
No. of Ports
8 or 16
Serial Standards
RS-232, RS-422, RS-485
Operation Modes
Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled
Baudrate
50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS, XON/XOFF
Isolation
2 kV
Surge
4 kV
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
Serial Signals
Serial Signals
RS-232
NPort S9650I-IRIG Series: TxD, RxD, RTS, CTS, DTR/+IRIG-B, DSR, DCD, GND
NPort S9650I Series: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
NPort S9650I-IRIG Series: TxD+, TxD-, RxD+, RxD-, GND, +IRIG-B
NPort S9650I Series: Tx+, Tx-, Rx+, Rx-
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
NPort S9650I-IRIG Series: Data+, Data-, GND, +IRIG-B
NPort S9650I Series: Data+, Data-, GND
DIP Switch Configuration
DIP Switch Configuration
Ethernet Interface
Turbo Ring, Master, Coupler, Reserved
Modbus TCP
Max. No. of Client Connections 32
Max. No. of Server Connections 16
DNP3 (Transparent)
DNP3 (Transparent)
Max. No. of Master Connections 16
Max. No. of Outstation Connections 32
Physical Characteristics
Physical Characteristics
Housing Metal
Installation 19-inch rack mounting
Dimensions 457 x 32 x 330 mm (18 x 1.25 x 12.99 in)
Weight Product only: 5.15 kg (11.35 lb)
Environmental Limits
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Standards and Certifications
EMC
EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Environmental Testing
IEC 60068-2-2
IEC 60068-2-14
Power Substation
IEC 61850-3, IEEE 1613
Safety
EN 61010-2-201, UL 61010-2-201
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6, IEC 60068-2-64
