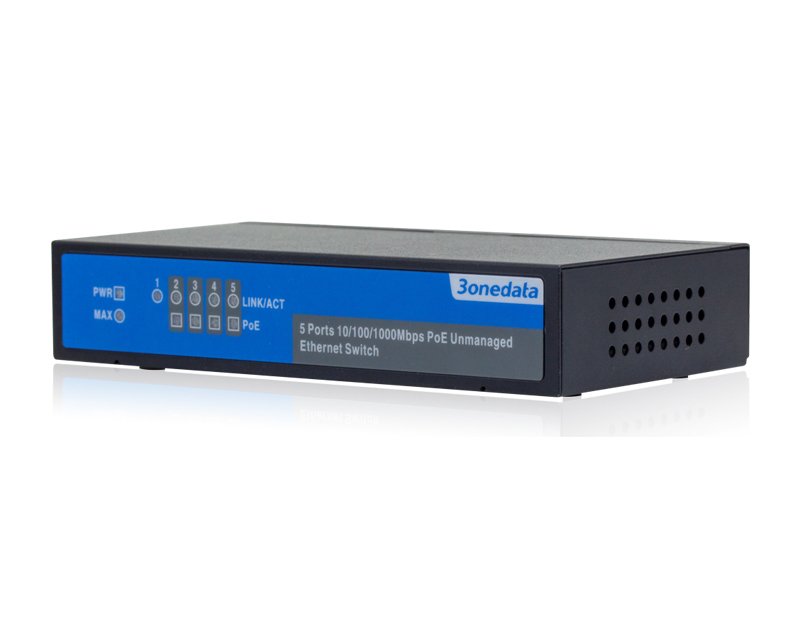

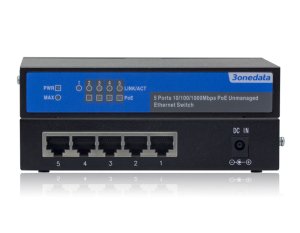

PS1005G-1GT-4PoE
Entry level, Rack-Mount, 5-port Full Gigabit Layer 2 Unmanaged PoE Switch
Unmanaged Full Gigabit Ethernet PoE Switch，5-Port 10/100/1000Base-T(X), support 4*IEEE802.3af/at PoE ports, 60W maximum output consummption of PoE
- 5 10/100/1000Base-T(X) (4xPoE)
- Tek bir PoE port maksimum 30W destekler. Toplam PoE 60W.
- 51VDC
- 0~45℃
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | 0/+45C |
| 10/100/1000BaseT(X) | : | 5 |
| PoE Port | : | 4 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.3af for PoE IEEE 802.3at for PoE+
|
|
PoE
|
The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
|
|
LED Indicator |
Port Indicator, Power Supply Indicator, PoE Power Consumption Indicator, POE Power Supply Output Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1.5Mbit Backplane bandwidth: 10G Packet forwarding: 7.44Mpps Jumbo frame: 9KByte
|
|
Power Requirement |
External power supply, DC 51V, 1.25A the power supply terminal is DC round head, positive inside and negative outside
|
|
Power Consumption |
Maximum power consumption (PoE full-load): 68.8W (220V/50Hz) |
|
Environmental Limit |
Operating temperature range: 0℃～45℃ Storage temperature range: -40℃～70℃ Operating humidity: 10%～90%(no condensation) Storage humidity: 5%～90%(no condensation)
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: wall mounting Dimension (W x H x D): 140mm×27.7mm×76mm
|
|
Certification |
CE, FCC, RoHS |
