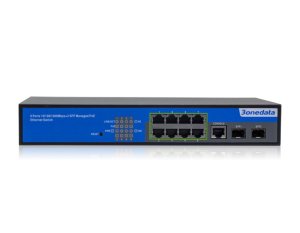

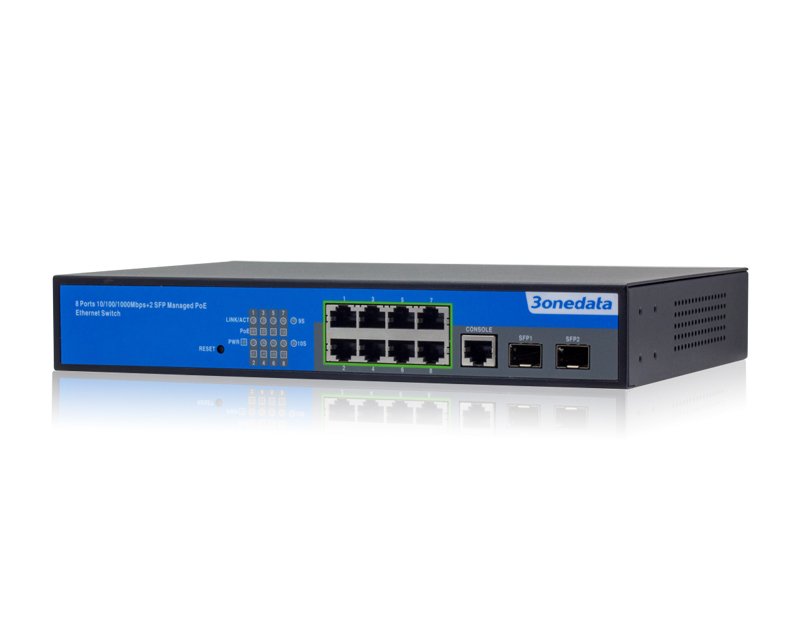

PS5010G-2GS-8PoE
Entry level, Rack-Mount, 10-port Full Gigabit Layer 2 Managed PoE Switch
Managed Full Gigabit Ethernet PoE Switch, 8-Port 10/100/1000Base-T(X) + 2 SFP ports, support 8*IEEE802.3af/at PoE ports, 140W maximum output consumption of PoE
- 8 Gigabit PoE bakır port ve 2 Gigabit fiber port (SFP Slot)
- Tek bir PoE port maksimum 30W destekler.
- 100-240VAC
- 0~45℃
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | 0/+45C |
| 10/100/1000BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| 1000Base SFP | : | 2 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.3ad for LACP IEEE 802.3af for PoE IEEE 802.3at for PoE+
|
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, RMON Configuration
|
| Security |
Classification of User Permissions, POE Power Alarm, POE temperature Alarm, Storm Suppression, Access Control, Failure Detection
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Redundancy Protocol
|
STP/RSTP/MSTP
|
|
PoE
|
The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
Gigabit POE copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning SFP slot: 1000Base-SFP
|
|
LED Indicator |
Port Indicator, Power Supply Indicator, PoE Power Consumption Indicator, PoE Power Supply Output Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 4.1Mbit Backplane bandwidth: 20G Packet forwarding rate: 14.88Mpps
|
|
Power Requirement |
100-240VAC, 50/60Hz
|
|
Power Consumption
|
Power consumption: ≤161W@220VAC |
|
Environmental Limit |
Operating temperature: 0℃～45℃ Storage temperature: -40℃～70℃ Operating humidity: 10%～90% (no condensation) Storage humidity: 5%～90% (no condensation)
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 1U rack mounting Dimension (W x H x D): 280mm×44.3mm×180mm
|
|
Certification |
CE, FCC, RoHS |
