Datasheet

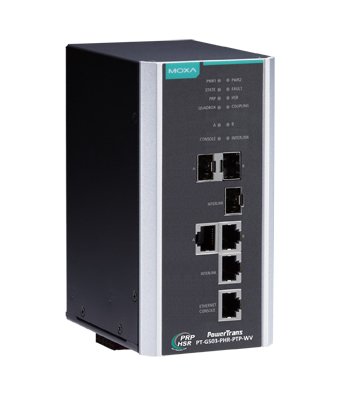

PT-G503-PHR-PTP-HV
- IEC 61850-3, IEEE 1613 (power substations) uyumlu
- IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) uyumlu
- PRP/HSR Coupling and QuadBox destekli
- Lokalden erişim için konsol portu
- Built-in MMS server, based on IEC 61850-90-4 switch modeling for power SCADA
- Donanımsal IEEE 1588v2 PTP destekli
- NERC CIP için sistem gelişimine uygun
- Universal 24/48 VDC ya da 110/220 VDC/VAC güç desteği aralığı ve izole girişli yedekli güç girişi
- -40 to 85°C çalışma sıcaklığı aralığı
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX |
| Protocols | PRP/HSR, SNMPv1/v2c/v3, DHCP Client, BootP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, LLDP, IPv6, SNMP Inform, NTP Client/Server |
| MIB | IEC 62439-3 MIB |
| • Interface | |
| Gigabit Ethernet | 3 x 10/100/1000BaseT(X) ports or 100/1000BaseSFP combo ports |
| Console Port | Ethernet console (10/100/1000 Mbps RJ45), USB-serial console (Type B connector) |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| Button | Reset button |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics• +13 to +30V for state '1” • -30 to +3V for state '0” • Max. input current: 8 mA |
| System LED Indicators | PWR1, PWR2, STATE, FAULT, PRP, HSR, QUADBOX, COUPLING |
| Port LED Indicators | A, B, ETHERNET CONSOLE, INTERLINK |
| • Power Requirements | |
| Input Voltage | • WV: 24/48 VDC (18 to 72 VDC) • HV: 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC) |
| Input Current | • Max. 0.660/0.360 A @ 24/48 VDC • Max. 0.150/0.080 A @ 110/220 VDC • Max. 0.260/0.170 A @ 110/220 VAC |
| Overload Current Protection | Present |
| Connection | 5-pin terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | IP40 protection |
| Dimensions | 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
| Weight | 1210 g |
| Installation | DIN rail mounting |
| • Environmental Limits | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| High Availability Automation Networks | IEC 62439-3 |
| Safety | UL 508 |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| Power Automation | IEC 61850-3, IEEE 1613 |
| Rail Traffic | EN 50121-4 |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
