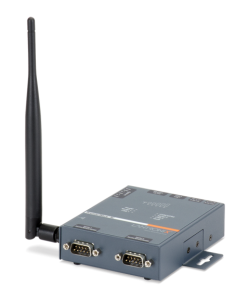

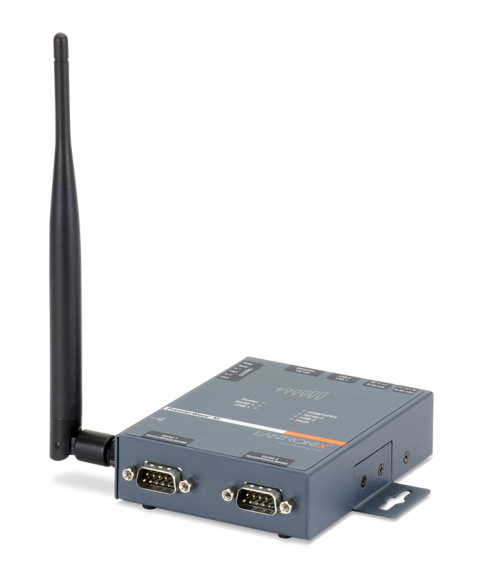

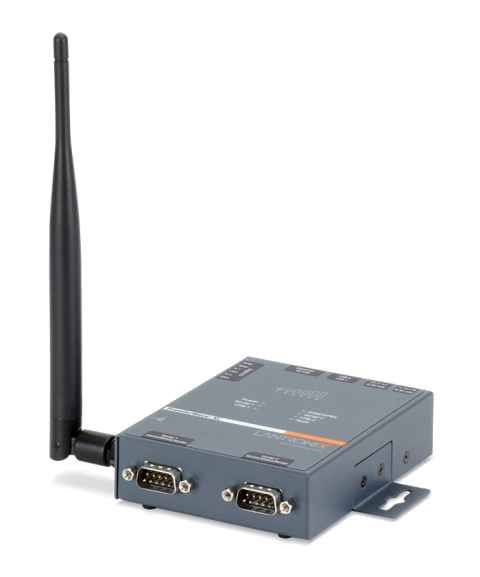

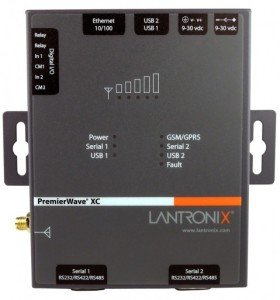

PXC2102G2-01 (PremierWave XC)
GSM/GPRS Application Server
Datasheet Link : PremierWave XC
PremierWave XC, çeşitli veri şifreleme ve doğrulama seçenekleri sunarak sağlam güvenlik sağlar. AES, SSH ve SSL özellikleri ile her yerden güvenli ve güvenli uzaktan erişim ve yönetim olanağı sağlayan kurumsal düzeyde güvenlik sağlar. PremierWave XC, Telnet, SSH veya web tarayıcısı (HTTP ve HTTPS) kullanarak bir ağ üzerinden uzaktan yapılandırılabilir. Mevcut seri port uygulamalarının herhangi bir kod değişikliği yapmadan çalışmasına izin vermek için Lantronix'in tescilli Secure Com Port Redirector sanallaştırma yazılımı da bulunmaktadır.
- Çift bağlantı
- Seri port’lu her cihaza ağ bağlantısı sağlayabilme
- Endüstri standardı yönetim araçları (Web, CLI, XML) ile basit cihaz kurulumu, yapılandırma ve izleme
Serial Interface
- Modes: Software selectable RS-232/422/485
- Software selectable RS-485 termination
- Standard and customizable serial data rates from 300 to 921 Kbps
- Characters: 7 or 8 data bits
- Parity: Odd, Even, None
- Stop Bits: 1 or 2
- Modem Control Signals: CTS, RTS, DTR/DCD
- Flow Control: XON/XOFF (software), CTS/RTS (hardware)
Serial Connector
- 2 x DB9M (DTE)
- Per port: 15 KV ESD Protection
USB Interface
- USB Mass Storage Device Support
USB Connectors
- 2 x USB Type A Host Connectors
- USB 2.0
I/O Interface
- Input:
- Connection: Sensors/Events
- Voltage acceptance: 0 to 30 VDC
- Digital input event: User Configurable Action
- Optical/Magnetic/Capacitive Isolation: 1.5 KV
- Output:
- Software: Turn Relay Output ON and OFF
- Automatic Event Trigger: ON or OFF (Possible events include loss of Ethernet link, loss of cellular link, digital input event)
- Relay Output Response: User Configurable
- Support 1A @24 V
I/O Connectors
- 2 x Digital Input
- 1 x Relay Out
Network Features
- Ethernet
- 10BaseT and 100Base-TX Link (auto sensing full and half duplex support)
- RJ-45 Connector with LEDs (indicating mode of operation and activity)
- 1.5 KV Surge Isolation
- GSM/GPRS
- Quad-band: 850/900/1800/1900 MHz
- Multislot Class 12 (MS-12)
- Transfer Rates – Up to 85.6 Kbps (downlink), Up to 42.8 Kbps (uplink)
- SMS: Send and Receive
- Outbound SMS: Up to 5 Numbers
- Inbound SMS: Control Relay Status
- 1 x SIM Slot (under screwed down cover plate)
- Antenna: 2dBi, 50 Ohm, SMA Connector
LED Indicators
- Mobile Wireless Mode, Signal Strength, Serial RX/TX, USB Connection, Power
Security
- SSL v3, SSH v2 Client & Server, Supports up to 1024-bit certificates
- Encryption: AES, 3DES, RC4
- Authentication: SHA-1, MD5, Base-64 User Access Lists
Software
- PremierWave XC Application Suite
- Windows 98/NT/2000/XP/Vista/7-based DeviceInstaller
Management
- Web Browser (SSL option for secure login)
- CLI (over Serial Ports, Telnet or SSH)
- XML Configuration Records via CLI or FTP
- Supports SNMP version 2c
Environmental
- Operating Temp: -40° to 85° C (-40° to 185° F)*
- Storage Temp: -30° to 75° C (-22° to 167° F)
- Relative Humidity: 5 to 95%, Non-condensing
- IP Rating: 30
- *UL rated to 60° C
Power
- Redundant Power Inputs with Failover : 2 x DC (barrel and terminal), 9-30 VDC
- Power Consumption: 3 Watts Maximum
- Power Supply (100-240 VAC, 50-60 Hz, 12 VDC @ 1A) with regional adapters
Dimensions
- Size: 10.8 cm (4.2 in) L x 8.5 cm (3.3 in) W x 2.9 cm (1.1 in) H
- Weight: 0.35 kg (0.77 lb)
Agency Approvals / Compliance
- EMC (FCC Part 15 Class B, CE, AS/NZS), RF (FCC Part 22H, Part 24E), Safety (UL 60950-1, CSA C22.2 No. 60950-1-07), Network (PTCRB, R&TTE), RoHS, REACH
Warranty
- 5-Year Limited
Bu ürüne ilk yorumu siz yapın!
