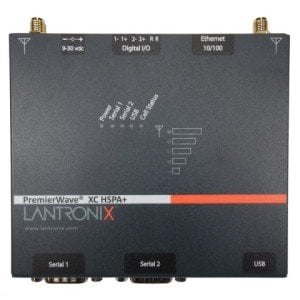

PXC2102H2-01-S

Network

• Cellular
  • UMTS/HSPA+ (850/800/900/1900/2100 MHz)
  • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
  • Transfer Rates – up to 14.4 Mbps (downlink), up to 7.2Mbps (uplink)
  • SMS Inbound – Shoulder Tap, Relay Control, Tunneling*
  • SMS Outbound – Event Notification, Tunneling*
  • 1 Secure SIM Slot
  • 2 x Omni-Directional Penta-band Antennas
• Ethernet
  • 10BaseT and 100Base-TX Link (auto sensing – MDIX, full and half duplex support)
  • RJ-45 Connector with LEDs (operation and link)
  • 1.5 KV Isolation

Serial Interface

• Software selectable RS-232/422/485
• Software selectable RS-485 termination
• Serial data rates from 300 to 921 Kbps
• Characters: 7 or 8 data bits
• Parity: Odd, Even, None
• Stop Bits: 1 or 2
• Modem Control: DTR, DSR/DCD
• Flow Control: XON/XOFF (SW), CTS/RTS (HW)

Serial Connector

• 2 x DB9M (DTE) with 15KV ESD protection per port

USB Interface

• USB Mass Storage Device Support

USB Connector

• 1 x USB Type A Host Connector (USB 2.0)

I/O Interface

• Input
  • Connection: Sensors/Events
  • Voltage acceptance: 0 to 30 VDC
  • Digital input event: User Configurable
  • Optical: 1.5 KV
• Output
  • Software: Turn Relay Output ON and OFF
  • Automatic Event Trigger: ON or OFF (possible events include loss of cellular link, loss of Ethernet link, digital input event)
  • Relay Output Response: User Configurable
  • Support 1A @24 V

I/O Connectors

• 2 x Digital Input, 1 x Relay Output (Terminal Block)

LED Indicators

• Cellular Mode, Signal Strength, Serial RX/TX, USB Connection, System Status, Power, Ethernet Speed, Ethernet Activity

Routing / Gateway

• NAT, Port Forwarding, SPI Firewall
• WAN Failover/Failback
• Multiple Ethernet LAN Hosts
• Multihoming

Protocol Support

• Network Services: SMTP Client, RSS, Telnet Server/Client, SNTP, FTP Server/Client, SFTP Server/Client, TFTP Server, Syslog
• Network Management: SNMP v1/v2c/v3*
• Network Security: HTTPS Server/Client, SSH Server/Clent, SSL Server/Client, TLS, IPSec*
• Network Protocols: ARP, HTTP, UDP/IP, TCP/IP, ICMP, BOOTP, DHCP, Auto IP, DNS
• Discovery Protocols: UPnP
• Industrial Protocols*: Modbus TCP, Modbus RTU, Modbus ASCII

Event Triggers and Actions

• Events: Cellular Link State Change, Ethernet Link State Change, Digital Input State Change
• Actions: SMS, Email, HTTP Post, FTP Put, Relay Output, SNMP Trap

Security

• SSL v3, SSH v2, Client & Server, Supports up to 2048-bit certificates
• Encryption: AES, 3DES, RC4
• Authentication: SHA-1, MDS, Base-64 User Access Lists

Management

• Web Browser (SSL option for secure login)
• CLI (over Serial Ports, Telnet or SSH)
• XML Configuration Records via CLI or FTP
• Supports SNMP

Software

• Lantronix Device Server Application Suite
• DeviceInstaller™

Power

• Input Voltage: 9-30 VDC
• Power Consumption: 3.6 Watts (typical)
• Power Supply (100 – 240 VAC, 50-60 Hz, 12 VDC @ 1.8A) with locking barrel connector and regional adapters, -40° to +75°C

Environmental

• Operating Temperature***: -40° to +70° C
• Storage Temperature: -40° to +85° C
• Relative Humidity: 5% to 95% non-condensing
• IP Rating: 30

Agency Approvals / Compliance

• EMC – FCC Part 15 Class B, IC, CE, EN55022, EN55024 Class B
• RF – FCC Part 22H, Part 24E, RSS 132,133, EN301-489-1, EN301 489-7, EN301 489-24, EN301 511, AS/ACIF 2042.1, 2042.3
• Safety – UL 60950-1, cUL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-07, AS/NZS 60950:2000
• Network – PTCRB, R&TTE
• Carrier Approval: AT&T
• RoHS, REACH

Dimensions

• Size: (L x W x H): 109mm x 109mm x 30mm (4.3in x 4.3in x 1.2in)
• Weight: 0.24 kg (0.55 lb)

Warranty

• 5-Year Limited
