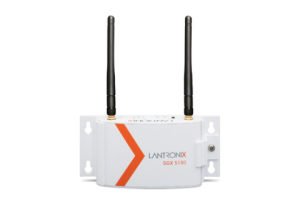

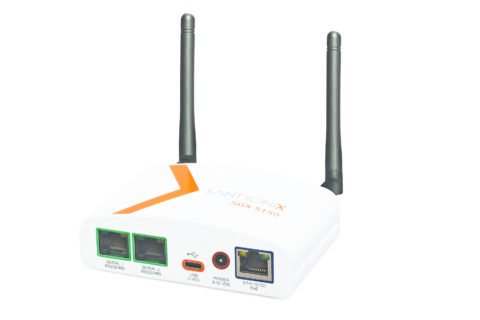

SGX5150202ES

Wireless Specifications

• 5G Wi-Fi (IEEE 802.11ac)
  • 1×1 ac (MCS0 – MCS9)
  • 20, 40 and 80 MHz Channels with optional SGI
• IEEE 802.11 n
  • 1×1 n (MCS0 – MCS7)
  • 20 MHz and 40 MHz channel width with optional SGI
• Advanced 802.11 n/ac Features
  • Transit Beamforming
  • Tx/Rx Low Density Parity Check (LDPC)
  • Rx Space Time Block Coding (STBC)
• Bluetooth/WLAN Coexistence
• Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i
• Dual band 2.4 GHz and 5 GHz
  • 412 GHz – 2.484 GHz – Channels 1 – 14
  • U-NII-1 (5.15 – 5.25 GHz) Channels 36, 40, 44, 48
  • U-NII-2 (5.25 – 5.35 GHz) Channels 52, 56, 60, 64
  • U-NII-2e (5.47 – 5.725 GHz) Channels 100 – 140
  • U-NII-3 (5.725 – 5.825 GHz) Channels 149 – 165

Ethernet Specifications

• IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT
• 3at Class 2 Powered Device
• Auto-Negotiation/Auto MDIX, Full-duplex and Half-duplex

USB Specifications

• Configurable USB 2.0 HS/FS port with USB type C connector
• USB Device (default setting) powered by a VBUS 5V
• USB configurable host can provide VBUS 5V 0.5A (power supply or PoE)

Physical Interface

• 2xRJ-45 Serial Ports, can be RS-232 or Multi-protocol RS-232/422/485
• Data rates – up to 921 Kbps
• 15 KV ESD Protection
• USB port – Type C Host / Device Connector
• RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge Isolation
• Reset Button
• WPS Button
• Barrel jack for 9-30VDC power input

Led Indicators

• System Status
• Wi-Fi Wireless Signal Strength
• Green/Red Simplified Diagnostics
• RJ-45 Ethernet (Activity/Link) – status handled through ports

Protocols

• DHCP Client, DHCP Server, DHCPv6 Client
• uPnP (Discovery), LCAP (77FE), Telnet, (S)FTP, HTTP(S)
• IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, SNMP v2/v3

TruPort Security

• FIPS 140-2 Level 1 Certification*
• WLAN Security
• AES/CCMP and TKIP encryption, 802.11i
• WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP
• Enterprise Security (WPA2-Enterprise)
  • EAP-TLS
  • EAP-TTLS (MS-CHAPv2)
  • EAP-PEAPv0/EAP-MS-CHAP v2)
  • EAP-PEAPv1
  • EAP-FAST

Management Interfaces

• DeviceInstaller™
• Web Manager (HTML5 Browser HTTP/HTTPS)
• CLI (over serial ports, telnet or SSH)
• OTA Field upgradeable
• Supports SNMP v2, V3
• XML Configuration records via
  CLI or FTP

Wireless Features

• Soft Access Point
• Wi-Fi Direct
• Multiple Soft AP Connections
• Simultaneous Soft AP and Client mode
• Secure Com Port Redirector™

Environmental

• Extended Operating Temp: -40° to 70° C
  (-40° to 158° F)
• Extended Storage Temp: -40° to 85° C
  (-40° to 185° F)
• IP Rating: 30
• Relative Humidity: 5 to 95%, Non-condensing
• ESD tolerance: Contact Discharge= 4Kv; Air Discharge=15Kv

Power

• Input: DC barrel, 9-30 VDC (standard)
• Input: Power over Ethernet (optional)
• Input: USB Type C I/O connector
• Power Consumption = 1.9W typical without USB Load
• Power Consumption = 5.5W max with
  USB Load
• Optional Power Supply — (100-240 VAC, 50-60 Hz, 12 VDC @ 1A) with regional adapters
• Output: 5V / 500 mA via USB Type C connector (in Host mode) when used with the Optional Power Supply

Certifications

• FCC Part 15 Subpart B, Class B, Subpart C 15.247, Subpart E 15.407
• ICES-003:2012 Issue 5, Class B, RSS-Gen, Issue 4, 2014, RSS-102, Issue 5, 2015, RSS-247, Issue 1, 2015
• RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008

• AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI, Japan Radio Cert Article 2-1 (19), (19-2), (19-3), (19-3-2)
• EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008
• UL 60950/CSA 22.2 No. 60950, IEC 60950 (or 62368-1)
• CE LVD 2014/35/EU, (CB, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +A2 2013) or (62368-1)

Physical Dimensions

• Dimensions: 11cm (4.3 in) X 8.9cm (3.5 in) x 2.6cm (1.0 in)
• Weight: 0.35 kg (0.77 lb)

Warranty

• Industry-leading 5-Year Limited Warranty
