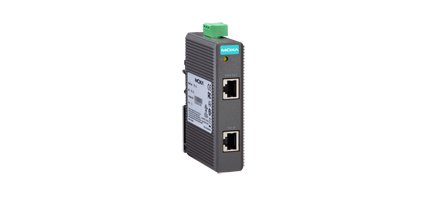

SPL-24
PoE Splitter
Datasheet Link : SPL-24
PoE teknolojisi ile standart bir Ethernet CAT5 kablosu kullanarak hem veri hem de elektrik gücünü ethernet özellikli cihazlara aktarabiliriz. SPL-24, PoE-Ethernet güç dağılımını gerçekleştirir. Güç kaynağından 100mt uzaklığa kadara hem güç ve hem de veri iletimi sağlanabilir.
- IEEE 802.3af compliant; splits power and data from PoE equipment
- Supports output power up to 12.95 W at 24 VDC
- Short circuit protection for power output
- -40 to 75°C operating temperature range (T model)
- DIN-rail mounting ability
ÜRÜN SİPARİŞ KODLARI :
|
SPL-24 |
PoE splitter with maximum output of 12.95W at 24 VDC, 0 to 60°C operating temperature |
|
PoE splitter with maximum output of 12.95W at 24 VDC, -40 to 75°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3af for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) for PoE IN and DATA OUT |
| • Power Requirements | |
| Input Voltage | 48 VDC |
| Operating Voltage | 44 to 57 VDC |
| Overload Current Protection | 400 mA @ 48 VDC input |
| Connection | 1 removable 3-contact terminal block for output |
| Output Voltage | 24 VDC |
| Output Power | Max. 12.95 watts (0.54 A @ 24 VDC) |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Dimensions | 24.9 × 100 × 86.2 mm (0.98 x 3.93 x 3.39 in) |
| Weight | 95 g |
| Installation | DIN-rail mounting |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 69050-1 |
| EMC | EN 55022 Class A |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Signal: 2 kV IEC 61000-4-5 Surge: Signal: 1 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Marine | DNV, GL, LR, ABS, NK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 5,104,703 hrs |
| Standard | MIL-HDBK-217F, GB 25°C |
| • Warranty | |
| Warranty Period | 5 years |
