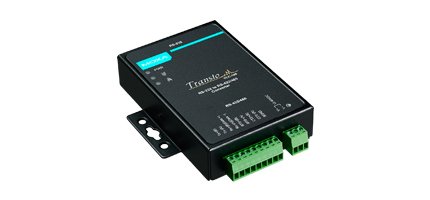

TCC-100I
RS-232 to RS-422/485 Converter
TCC-100/100I serisi RS-232’den RS-422/485’e dönüştürücüler, RS-232 iletim mesafesini uzatarak ağ oluşturma yeteneğini arttırır. Her iki dönüştürücü de DIN-rail montajı, terminal blok kablolama, güç için harici terminal bloğu ve optik izolasyon (sadece TCC-100I ve TCC-100I-T) içeren üstün endüstriyel sınıf tasarımına sahiptir. TCC-100/100I serisi dönüştürücüler, kritik endüstriyel ortamlarda RS-232 sinyallerini RS-422/485'e dönüştürmek için ideal çözümlerdir.
- RTS/CTS desteği ile RS-232’den RS-422’ye dönüştürme
- RS-232’den 2-telli veya 4-telli RS-485’e dönüştürme
- 2kV izolasyon (sadece TCC-100I)
- DIN-rail ve duvar montaj opsiyonu
- Kolay RS-422/485 kablolama için Plug-in terminal blok
- Power, Tx, Rx için LED
- -40 to 85°C çalışma sıcaklığı opsiyonları
ÜRÜN SİPARİŞ KODLARI :
|
TCC-100 |
RS-232 to RS-422/485 Converter |
|
TCC-100I |
RS-232 to RS-422/485 Converter |
|
TCC-100I-T |
RS-232 to RS-422/485 converter with optical isolation, -40 to 85°C operating temperature |
|
TCC-100-T |
RS-232 to RS-422/485 converter, -40 to 85°C operating temperature |
| • RS-232 Side | |
| Connector | DB9 female |
| Signals | TxD, RxD, RTS, CTS, GND |
| • RS-422/485 Side | |
| Connector | Terminal Block |
| Signals | (interface selected by DIP switch) RS-422: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND RS-485-2w: Data+, Data-, GND |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| • Serial Communication | |
| Baudrate | 50 bps to 921.6 kbps |
| Optical Isolation | 2 kV (TCC-100I/100I-T) |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
| Weight | 148 g (0.33 lb) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -20 to 60°C (-4 to 140°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Source of Input Power | Power input jack |
| Input Voltage | 12 to 48 VDC |
| Input Current | TCC-100/100-T: 85 mA @ 12 VDC TCC-100I/100I-T: 150 mA @ 12 VDC |
| Voltage Reversal Protection | Protects against V+/V- reversal |
| Overcurrent Protection | Protects against two signals shorted together |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV EN 61000-4-5 (Surge): Power: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 3,017,857 hrs |
| Standard | MIL-HDBK-217F |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
