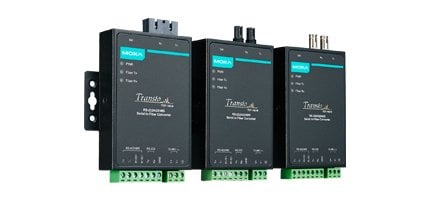

TCF-142-S-SC
RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and SC connector, 0 to 60°C operating temperature
TCF-142 dönüştürücüler, RS-232 veya RS-422/485 seri arabirimleri ile multi-mode/single-mode fiber’leri yönetebilen çoklu bir arabirim devresi ile donatılmıştır. TCF-142 dönüştürücüler seri iletimi multi-mode ile 5km'ye (TCF-142-M) veya single-mode ile 40km'ye (TCF-142-S) uzatmak için kullanılır. TCF-142 dönüştürücüler, RS-232 veya RS-422/485 sinyallerini dönüştürmek için yapılandırılabilir (ancak aynı anda her ikisini dönüştüremez).
·RS-232/422/485 iletişim mesafesini uzatır;
- Single-mode ile 40km (TCF-142-S)
Multi-mode ile 5km (TCF-142-M)
- Sinyal girişimini azaltır
- Elektriksel parazit ve kimyasal korozyon koruması
- 921.6kbps baudrate
- "Ring" ve "Point-to-Point" desteği
- -40/+75°C çalışma sıcaklığı seçeneği
ÜRÜN SİPARİŞ KODLARI :
|
TCF-142-M-SC |
RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and SC connector, 0 to 60°C operating temperature |
|
TCF-142-M-ST |
RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and ST connector, 0 to 60°C operating temperature |
|
TCF-142-S-SC |
RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and SC connector, 0 to 60°C operating temperature |
|
TCF-142-S-ST |
RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and ST connector, 0 to 60°C operating temperature |
|
TCF-142-M-SC-T |
RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and SC connector, -40 to 75°C operating temperature |
|
TCF-142-M-ST-T |
RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and ST connector, -40 to 75°C operating temperature |
|
TCF-142-S-SC-T |
RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and SC connector, -40 to 75°C operating temperature |
|
TCF-142-S-ST-T |
RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and ST connector, -40 to 75°C operating temperature |
| Çalışma Sıcaklığı | : | 0/+60C |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | SC |
| • Optical-Fiber Side | |
| Fiber Connector | SC or ST |
| Fiber Cable Requirements | |
| Ring Transmission | Half-duplex |
| Point-to-Point Transmission | Half-duplex or full-duplex |
| • RS-232/422/485 Side | |
| Connector | Terminal Block |
| RS-232 Signals | Tx, Rx, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Baudrate | 50 bps to 921.6 kbps |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | Without ears: 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in) With ears: 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in) |
| Weight | 320 g (0.71 lb) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 140 mA @ 12 VDC |
| Power Line Protection | 1 kV Burst (EFT), EN61000-4-4 1 kV Surge, EN61000-4-5 |
| Voltage Reversal Protection | Protects against V+/V- reversal |
| Overcurrent Protection | 1.1 A (protects against two signals shorted together) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 10 V/m EN 61000-4-4 (EFT): Power: 1 kV EN 61000-4-5 (Surge): Power: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 780,480 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
