TNS5500D-4GT-8T
EN50155 8+4G-port Managed Ethernet Switches
8-port 10/100Base-T(X) + 4-port 10/100/1000Base-T(X), M12 L2 Managed Industrial Switch, wall mounting
Datasheet Link : TNS5500 Serisi
-
4x Gigabit M12 (Bypass), 8x 100M M12 (PoE opsiyonal)
- EN50155
-
Patentli SW-Ring teknolojisi, single ring, coupling ring, chain ring
-
110VDC
-
–40~75℃
| TNS5500-4GT-8T | 8-port 10/100Base-T(X) + 4-port 10/100/1000Base-T(X), M12 L2 Managed Industrial Switch, 19” 1U rackmount |

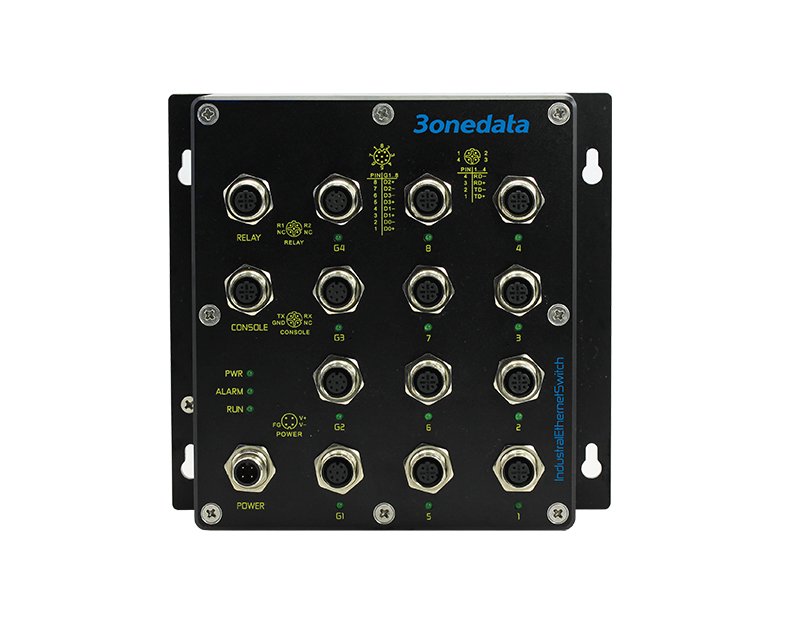

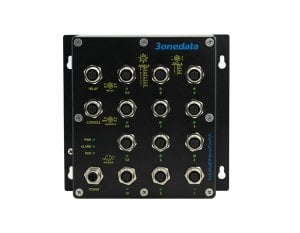

| TNS5500D-4GT-8T | 8-port 10/100Base-T(X) + 4-port 10/100/1000Base-T(X), M12 L2 Managed Industrial Switch, wall mounting |
| TNS5500-4GT-8PoE | 8-port 10/100Base-T(X) PoE + 4-port 10/100/1000Base-T(X), M12 L2 Managed Industrial PoE Switch, 19” 1U rackmount |
| TNS5500D-4GT-8PoE | 8-port 10/100Base-T(X) PoE + 4-port 10/100/1000Base-T(X), M12 L2 Managed Industrial PoE Switch, wall mounting |
| Toplam Port Sayısı | : | 12 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| 10/100/1000BaseT(X) | : | 4 |
| EN50155 | : | VAR |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, E-mail Alarm, Storm Suppression
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Troubleshooting |
Ping
|
|
Time Management
|
SNTP |
|
PoE
|
PoE power supply pins: 1 and 2 are negative poles, 3 and 4 are positive poles |
| Interface |
100M M12: 10/100Base-T(X), M12 (Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; PoE Output Optional PoE power supply pin: 1, 2 are negative pole; 3, 4 are positive pole Gigabit M12: 10/100/1000Base-T(X), M12 (Female), 8-Pin A-Coded, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Console port: CLI command line management port (RS-232), RJ45 (rack-mounted) or M12 (wall mounting) Alarm port: 3-pin 5.08mm pitch terminal blocks (rack-mounted) or M12 (wall mounting), support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: < 10μs
|
|
Power Requirement |
Rack-mounted: 110VAC/DC (100~240VAC/DC), 3-pin 5.08mm pitch terminal blocks; Wall mounting: 110VDC (70~160VDC), M12 (Male), 4-pin A-Coded;
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~75℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Rack-mounted Housing: IP30 protection, metal Installation: 1U rack-mounted Dimension (W x H x D): 441.6mm×44.6mm×207.9mm Weight: 2.83kg
Wall Mounting Housing: IP30 protection, metal Installation: wall mounting Dimension (W x H x D): 180mm×170mm×60.2mm Weight: 2.06kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD) ，Level 3 Air discharge: ±8kV Contact discharge: ±6kV
IEC 61000-4-3 (RS), Level 3 Test level: 20V/m Frequency range: 80MHz-1GHz
IEC 61000-4-4 (EFT), Level 3 Power supply: ±2kV Ethernet interface: ±1kV Relay: ±2kV
IEC 61000-4-5 (Surge)，Level 3 Power supply: common mode ±2kV, differential mode ±1kV Ethernet interface: ±2kV Relay: common mode ±2kV, differential mode ±1kV
IEC 61000-4-6 (CS)，Level 3 Test level: 10V Frequency range: 150kHz-80MHz
IEC 61000-4-8 (PFMF)，Level 4 Power frequency: 50Hz Continuous magnetic field strength: 30A/m Short-term magnetic field strength: 300A/m
Shock: IEC 61373 Free fall: IEC 60068-2-32 Vibration: IEC 61373 Fire prevention: EN45545
|
|
Certification |
CE, FCC, RoHS, EN50155, EN50121-3-2 |
