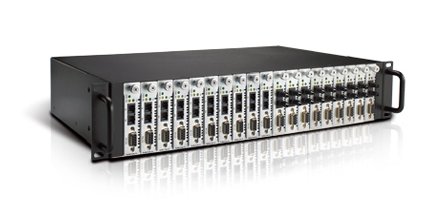

TRC-190-AC
19-inch rackmount chassis media converter
- 19-inch chassis for rackmount use
- 19 slots for high density applications
- Supports hot-swap and dual power input with redundancy
- Fanless chassis design reduces servicing costs
|
TRC-190-AC |
Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel |
|
Rack chassis, 2U, single 36 to 53 VDC input, with 19 slots on front panel |
|
RS-232/422/485 to multi-mode fiber slide-in module converter, SC connector |
|
|
RS-232/422/485 to multi-mode fiber slide-in module converter, ST connector |
|
|
RS-232/422/485 to single-mode fiber slide-in module converter, SC connector |
|
|
RS-232/422/485 to single-mode fiber slide-in module converter, ST connector |
|
|
10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector |
|
|
10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode SC connector |
|
|
10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector |
|
Redundant power supply, 110 to 240 VAC |
|
|
Redundant power supply, 36 to 53 VDC |
|
|
Face plate to cover unused front panel slots (required for all unused slots) |
| • Physical Characteristics | |
| Housing | SECC (1.2 mm) |
| Dimensions | 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in) |
| Weight | 5.2 kg (11.4 lb), with one power module installed |
| Number of Slots | 19 slots on the front for slide-in modules, 2 slots at the back for power supply modules |
| • Environmental Limits | |
| Operating Temperature | 0 to 60°C (32 to 140°F |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | Universal 100 to 240 VAC (47 to 63 Hz) or ±48 VDC (36 to 53 VDC and -36 to -53 VDC) |
| Power Consumption | 75 W max. (when all slots are occupied and in use) |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55032 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV EN 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV EN 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV EN 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 PFMF EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 1,055,112 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
