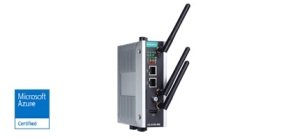

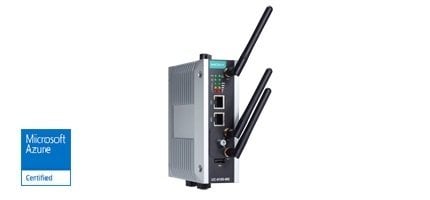

UC-8112-ME-T-LX1
Communication-centric RISC computing platform
- ARMv7 Cortex-A8 1 GHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- SD socket for storage expansion Fog Computing White Paper
- Programmable LEDs and a programmable button for easy installation and maintenance
- Mini PCIe socket for cellular module
- Debian 8 open platform
- Cybersecurity
- -40°C to 70°C wide temperature range with LTE enabled
RISC-based communication-centric computing platform with 1 GHz CPU, 512MB RAM, Mini PCIe socket for cellular, 2 Ethernet, 2 serial ports, USB port, SD Socket, and -40 to 85°C operating temperature |
|
UC-8112-ME-T-LX1 |
RISC-based communication-centric computing platform with 1 GHz CPU, 1 GB RAM, Mini PCIe socket for cellular, 2 Ethernet, 2 serial ports, USB port, SD Socket, and -40 to 85°C operating temperature |
LTE regions: Asia, Europe, Australia, New Zealand (compatible with LTE/EU, HSPA+, GPRS/GSM, and GPS). LTE: B1, B3, B7, B8, B20. UMTS/HSPA+: B1, B2, B5, B6, B8. GNSS (GPS+Glonass) |
26 dBi, 1572 MHz, L1 band antenna for GPS |
|
Multi-band antenna that covers 700-2700 MHz. Specially designed for 2G, 3G, and 4G applications. Magnetic mounting is available. |
|
LTE Stick antenna that covers 704-960/1710-2620 MHz providing omnidirectional radiation with a gain of 4.5 dBi. |
|
LTE stick antenna that covers 704-960/1710-2620 MHz with a gain of 5 dBi. |
|
Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available. |
Hardware Specifications | |
• Computer | |
CPU | ARMv7 Cortex-A8 1000 MHz |
OS (pre-installed) | Debian 8 (Kernel 4.1) |
USB | USB 2.0 host x 1 (type A connector) |
DRAM | 512 MB or 1 GB DDR3 SDRAM |
• Storage | |
Storage Expansion | • SDHC/SDXC socket for storage expansion • 4 GB eMMC flash with OS pre-installed |
• Ethernet Interface | |
LAN | 2 auto-sensing 10/100 Mbps ports (RJ45) |
Magnetic Isolation Protection | 1.5 kV built-in |
• Serial Interface | |
Serial Standards | 2 RS-232/422/485 ports, software-selectable (5-pin terminal block connector) |
Console Port | RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1) |
• Serial Communication Parameters | |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
Baudrate | 921600 bps (max.) |
• Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, GND |
RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
RS-485-2w | Data+, Data-, GND |
• LEDs | |
System | Power x 1, USB x 1, SD x 1, signal strength x 3 |
LAN | 10M/100M on connector |
Programmable | Diagnosis x 3 |
• Switches and Buttons | |
Push Button | Initially configured to return a diagnostic report, and to reset the device to factory defaults |
• Physical Characteristics | |
Housing | SECC + Al 5052 |
Weight | 550 g (1.22 lb) |
Dimensions | 141 x 125.6 x 54.8 mm (5.55 x 4.94 x 2.15 in) |
Mounting | DIN rail |
• Environmental Limits | |
Operating Temperature | Wide Temp. Models: -40 to 85°C (-40 to 185°F) Wide Temp. models (with LTE accessory): -40 to 70°C (-40 to 158°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Anti-Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
Anti-Shock | 20 g @ IEC 60068-2-27, half sine wave, 30 ms |
• Power Requirements | |
Input Voltage | 12 to 36 VDC (3-pin terminal block, V+, V-, SG) |
Input Current | 500 mA @ 12 VDC |
Power Consumption | 6 W (without cellular module and external USB device attached) |
• Standards and Certifications | |
Safety | UL 60950-1 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz, 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: DC Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 300 A/m, 60 s |
Green Product | RoHS, CRoHS, WEEE |
• Reliability | |
Alert Tools | External RTC (real-time clock) |
Automatic Reboot Trigger | External WDT (watchdog timer) |
• Warranty | |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
Software Specifications | |
• Linux | |
OS | Debian 8 |
Web Server (Apache) | Allows you to create and manage web sites; supports PHP and XML |
Terminal Server (SSH) | Provides secure encrypted communications between two untrusted hosts over an unsecure network |
Kernel | GNU/Linux 4.1 |
System Shell | DASH (default), BASH |
Text Editor | vim, nano |
Internet Protocol Suite | TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL |
Programming Language Support | PHP, Perl, Python |
Internet Security Suite | OpenVPN, IPTables |
Cryptographic Hardware Accelerators | AES, SHA, OpenSSL |
Self Diagnosis | Check status of system and hardware component via software method |
Linux Board Support Packages (BSP) | • GCC C/C++ cross development tool chain • Bootloader/ Kernel/ filesystem |
Cellular Networking | • WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd to connect to the Internet. • QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interface (QMI) protocol. • MODBUS: Software library to send/receive data according to the Modbus protocol. This library is written in C and supports RTU (serial) and TCP (Ethernet) communications. • Watchdog: Features a hardware function to trigger system reset in a user specified time interval (Linux standard API). |
Cybersecurity | •SUDO Mechanism: Sudo (short for super-user do) is a program designed to let system administrators allow some users to execute certain commands as the root user (or another user). The root user account is disabled by default. The basic philosophy is to give as few privileges as possible but still allow people to get their work. • Security Update of Existing Software Packages: All software packages installed on the UC-8100-ME-T can be automatically updated using Debian Linux's Advanced Packaging Tool (APT) server or Moxa's server. • USB Protection: Provides a mechanism for disabling USB function to avoid USB stick malware attacks. • SD Write Protection: Provides a mechanism for disabling write permission to the microSD memory card plugged in directly into the card slot, or which is part of an extended storage system. |
