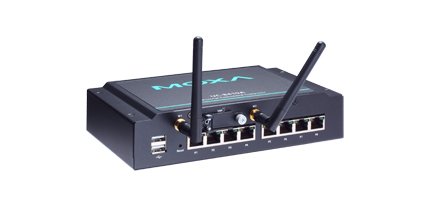

UC-8410A-LX

Highly efficient, security-enabled, wireless computing platform that supports a rich set of interfaces



Datasheet Link : UC-8410A Serisi


UC-8410A Serisi gömülü bilgisayarlar, 8 adet RS-232/422/485 seri port, 3 adet Ethernet portu, 1 adet kablosuz modül için 1 adet PCIe mini yuvası, 4 adet dijital giriş kanalı, 4 adet dijital çıkış kanalı, 1 mSATA yuvası ve 2 USB 2.0 host içerir.

UC-8410A, Freescale Cortex-A7 çift çekirdekli 1 GHz RISC CPU kullanılarak tasarlanmıştır. Bu güçlü CPU, çok fazla ısı üretmeden çeşitli iletişim işlevlerini destekler. Yerleşik 1GB SD kart ve 512 MB DDR3 SDRAM, uygulama yazılımınızı çalıştırmak için yeterli bellek sağlar ve mSATA yuvası, ek veri depolama alanı ekleme esnekliği sağlar. UC-8410A, seri portlar, Ethernet portları, kablosuz iletişim yuvası ve dijital I/O kanalları dahil olmak üzere çeşitli iletişim entegreleri ile birlikte gelir ve bu sayede ağ ve cihaz iletişimi gerektiren endüstriyel uygulamalar için iletişim platformu olarak idealdir.

UC-8410A Serisi, önceden kurulmuş olan Linux Debian 8 ile birlikte gelir. Bu, UC-8410A bilgisayarını endüstriyel uygulamalarla kullanım için en uygun maliyetli bir çözüm haline getirir.


  • Freescale LS1021A Coretex-A7 1 GHz dual-core processor 4G LTE Guide
  • 512 MB DDR3 SDRAM
  • 8 RS-232/422/485 serial ports
  • 3 10/100/1000 Mbps Ethernet ports
  • Wireless-enabled with PCIe mini slot
  • 2 USB 2.0 hosts for mass storage devices Fog Computing White Paper
  • DIN-rail or wall-mounting installation
  • Robust, fanless design
  • -40 to 75°C wide temperature model available
  • Ready-to-run Debian ARM 8



ÜRÜN SİPARİŞ KODLARI :


UC-8410A-LX

Cortext-A7 1 GHz dual-core RISC-based computer, 1 GB SD card, 512 MB DDR3L, serial ports x 8, DIs x 4, DOs x 4, LANs x 3, wireless enabled, mSATA slots x 1, USB, Debian ARM8, -10 to 60°C operating temperature

UC-8410A-LX1

Cortex-A7 1 GHz dual-core RISC-based computer, 1 GB SD card, 512 MB DDR3L, serial ports x 8, DIs x 4, DOs x 4, LANs x 3, wireless enabled, 16 GB mSATA, USB, Debian ARM8, -40 to 75°C operating temperature

UC-8410A-T-LX

Cortex-A7 1 GHz dual-core RISC-based computer, 1 GB SD card, 512 MB DDR3L, serial ports x 8, DIs x 4, DOs x 4, LANs x 3, wireless enabled, mSATA slots x 1, USB, Debian ARM8, -40 to 75°C operating temperature



OPSİYONEL ÜRÜNLER :

MODUL KITLER :


CELLULAR-LTE-EU(LE910)

1 LTE module, 1 antenna with cable and connector, 2 black screws, 1 lock washer, 1 nut, 1 thermal pad


HÜCRESEL ANTEN :


ANT-LTE-ASM-02

GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omni-directional, rubber duck antenna



KABLOSUZ LAN ANTEN :


ANT-WDB-ARM-02

2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector




KABLO / ADAPTÖR :


CBL-F9DPF1x4-BK-100

Console cable with 4-pin connector

PWC-C7EU-2B-183

2.5A/250V Continental European (EU) power cord, 183 cm length

PWR-24270-DT-S1

Power Adapter



• Computer
CPU ARMv7 Cortex-A7 dual-core 1 GHz
USB USB 2.0 hosts x 2, Type A connector
DRAM 512 MB DDR3 SDRAM onboard (up to 1 GB, by CV request)
OS (pre-installed) Debian ARM 8
• Storage
Main Storage 1 GB SD card for OS
Storage Expansion mSATA slot
• Ethernet Interface
LAN Auto-sensing 10/100/1000 Mbps ports (RJ45) x 3
Magnetic Isolation Protection 1.5 kV built-in
• Serial Interface
Serial Standards RS-232/422/485 software-selectable ports (8-pin RJ45) x 8
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate 50 bps to 115.2 kbps (supports nonstandard baudrates; see user’s manual for details)
• Serial Signals
RS-232 TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Data+, Data-, GND
• Digital Input
Input Channels DI x 4
Input Voltage 0 to 30 VDC
Digital Input Levels for Dry Contacts • Logic level 0: Close to GND
• Logic level 1: Open
Digital Input Levels for Wet Contacts • Logic level 0: +10 to +30 V (COM to DI)
• Logic level 1: +3 V max.
Connector Type 10-pin screw terminal block (4 points, COM, GND)
Isolation 3 kV optical isolation
• Digital Output
Output Channels 4, sink type
Output Current Max. 200 mA per channel
On-State Voltage 24 VDC nominal, open-drain to 30 V
Connector Type 10-pin screw terminal block (4 points, GND)
Isolation 3 kV optical isolation
• LEDs
System Power, Ready, Storage, Diagnostic, Wireless signal strength
LAN 100M/Link/Act x 3, 1000M/Link/Act x 3 (on connector)
Serial TxD x 8, RxD x 8 (on connector)
Reset Button Supports ''Reset to Factory Default and System diagnostics''
• Physical Characteristics
Housing SECC sheet metal (1 mm)
Weight 1 kg (2.21 lb)
Dimensions 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in)
Mounting DIN-rail, wall
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Anti-Vibration 2 Grms @ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per axis
Anti-Shock 20 g @ IEC-68-2-27, half sine wave, 11 ms
• Power Requirements
Input Voltage 12 to 48 VDC (3-pin terminal block)
Input Current 12 to 48 VDC, 1.57 to 0.42 A
Power Consumption 19 W
• Standards and Certifications
Safety UL 60950-1
EMC CISPR 32, FCC Part 15B Class A
EN 55032/24
IEC 61000-4-2 ESD: Contact 4 kV; Air 8 kV
IEC 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power 0.5 kV; Signal 0.5 kV
IEC 61000-4-5 Surge: Power 0.5 kV; Signal 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61
• Reliability
Alert Tools Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger Built-in WDT (watchdog timer)
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
Note The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adapter and cables.

Software Specifications
• Linux
OS Debian ARM 8
Web Server (Apache) Allows you to create and manage web sites; supports PHP and XML
Terminal Server (SSH) SSH allows remote logins to a secure encrypted console from any connected network
Kernel GNU/Linux 3.12
System Shell: DASH, BASH
Text Editor: vim, nano
File System Ext2, Ext3, Ext4
Internet Protocol Suite TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL
Programming Language Support PHP, Perl, Python
Internet Security OpenVPN, iptables
Cryptographic Hardware Accelerators AES, SHA, OpenSSL
Self Diagnosis Check status of system and hardware component via software method
Linux Board Support Packages (BSP) GCC C/C++ cross development tool chainBootloader/ Kernel/ filesystem
Cellular Networking Allows Unix machines to connect to the Internpppd to connect to the Internet. Connect talcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interface (QMI) protocol.
Watchdog Features a hardware function to trigger system reset in a user specified time interval (Linux standard provided)
Application Development Software • Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server
Software Protection Encryption tool for user executable files (based on patented Moxa technology)
