UD2100002-01 (UDS2100 serisi)

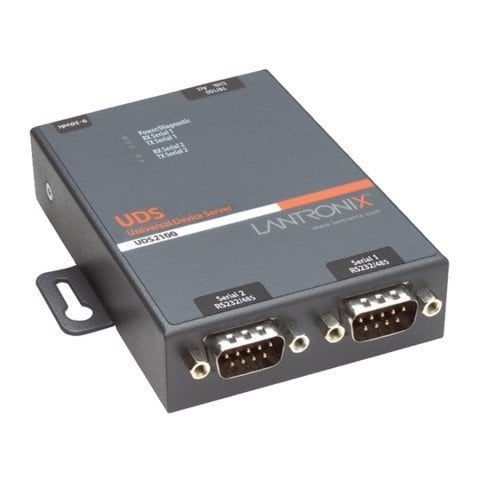

UDS2100 two-port device server
UDS serisi, kullanıcıların herhangi bir seri port’lu cihaza, ethernet veya internet üzerinden bağlamalarını, yönetmelerini ve kontrol etmelerini sağlar. Yangın ve alarm paneli ekipman üreticileri ürünlerine, UL'ye yeniden başvurmaya gerek duymadan ağ yeteneklerini kolayca ekleyebilir.
- HTTP, DHCP, Telnet, seri veya Lantronix Device Installer yardımcı programı ile kolay yapılandırma
- RS232, RS422 ve RS485 destekleyen 2xDB9M seri port
- RoHS ve WEEE
- TruPort® Com port kontrol teknolojisi
Serial Interface
- Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
- Connectors: 2 DB9M DTE serial ports
- Data Rates: Software-selectable baud rate from 300 to 921 KBaud
- Characters: 7 or 8 data bits
- Parity: odd, even, none
- Stop Bits: 1 or 2 Control
- Signals: CTS/RTS (Hardware)
- Flow Control: XON/XOFF (Software)
Network Interface
- Interface: 10Base-T/100Base-TX Ethernet port
- Software selectable Ethernet speed 10/100/Auto
- Software selectable Half/Full/Auto duplex
- Connectors: RJ45
- Standards: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, and RFC2217
Indicators (LED)
- Power (blue)
- RXI Serial (Activity) (green)
- TXI Serial (Activity) (yellow)
- RX2 Serial (Activity) (green)
- TX2 Serial (Activity) (yellow)
- RJ45 LEDs Link (100=green,10=yellow)
- Act (Full=green, Half duplex=green)
Processor
- CPU: Lantronix DSTNI-EX 48 MHz clock
- Memory: 256 KB zero wait state SRAM, 2 MB Flash
Management
- Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP
Power
- 9-30 VDC on barrel connector (1.8 Watts maximum consumption)
Environmental
- Operating: 0° to 60° C (32° to 140°F)
- Storage: -40° to 85° C (-40 to 185°F)
Packaging
- Material: Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available
- Dimensions (LxWxH): 9.5 x 7.2 x 2.3 cm (3.7 x 2.8 x 0.9 in)
- Weight: 0.4 kg (0.9 lbs)
- IP Rating: 30
Agency Approvals
- FCC, C/UL, CSA, VCCI, CE,TUV, CTick
Shipping Dimensions
- Dimensions (LxWxH): 35.5 x 17.1 x 7.6 cm (14 x 6.75 x 3 in)
- Weight: 1.5 kg (3.0 lbs)
Included Software
Windows® 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector software and related utilities
Emissions
| FCC Part 15 Subpart B Class A | Radiated Emissions 30MHz – 1000MHz |
| ICES-003 Issue 4 February 2004 Class A | Radiated Emissions 30MHz – 1000MHz |
| AS/NZS CISPR 22: 2004 Class A | Radiated Emissions 30MHz – 1000MHz |
| EN55022: 1998 + A1: 2000 + A2: 2003 Class A | Radiated Emissions 30MHz – 1000MHz |
| VCCI V-3/2005.04 Class A | Radiated Emissions 30MHz – 1000MHz |
| EN61000-3-2: 2000 Class A | Harmonic Current Emissions |
| EN61000-3-3: 1995 + A1: 2001 | Fluctuations and Flicker |
Immunity
| EN55024: 1998 | +A1: 2001 +A2: 2003 |
| IEC_61000-4-2: 1995 | ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect) |
| IEC_61000-4-3: 1995 | Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80% |
| IEC_61000-4-4: 1995 | EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines |
| IEC_61000-4-5: 1995 | Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode |
| IEC_61000-4-6: 1996 | Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz) |
| IEC_61000-4-8: 1993 | Magnetic Field Immunity 50Hz 1.0 Arms/m |
| IEC_61000-4-11: 1994 | Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods) |
Isolation
- Designed with protection against transients and ESD for use under harsh environments.
- Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers
- Power Input: Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages
- Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
