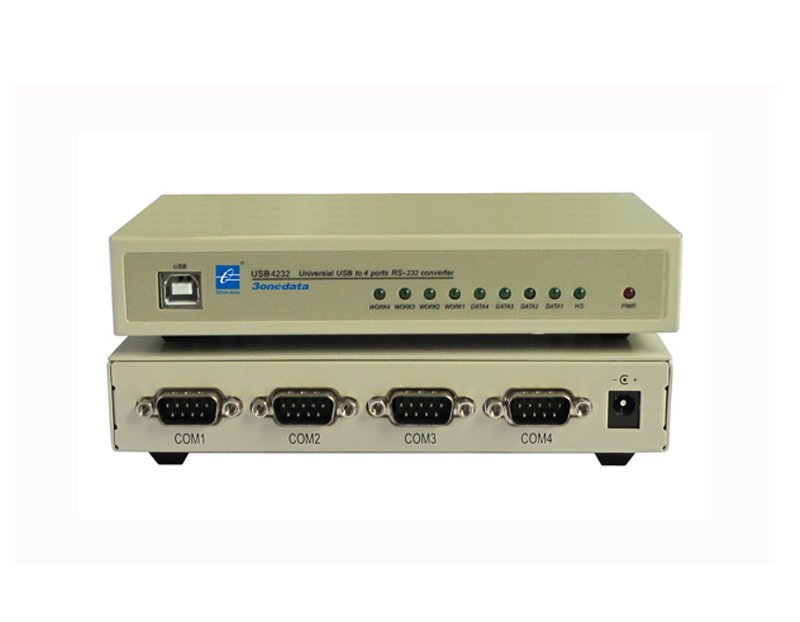

USB4232
USB - Seri (RS-232) Çevirici
USB→4*RS-232, USB2.0, 15KV ESD protection, 5VDC
- USB ve 4xRS-232 arasında çift yönlü iletişim
- Harici besleme gerektirmez
- Otomatik seri port sinyal hızı ayarlama
- 1500W surge ve 15KV elektrostatik koruma
- 5VDC güç kaynağı girişi veya USB güç kaynağını destekler (USB ve harici 5VDC güç kaynağı aynı anda kullanılabilir)
- -20~60℃
| Çalışma Sıcaklığı | : | -20/+60C |
| Toplam Port Sayısı | : | 4 |
| RS-232 | : | 4 |
| USB | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| Serial Port |
Standard: EIA RS-232C Quantity of serial port: 4 RS-232 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RST, CTS Baud rate: 300bps~115200bps Data bit: 7bit, 8bit Stop bit: 1bit, 2bit Parity bit: None, Even, Odd, Space, Mark Flow control: RTS/CTS, XON/XOFF Interface form: DB9, Male Transmission distance: 15m Interface protection: 1500W surge protection, 15kV electrostatic protection
|
|
USB Port |
Standard: USB 1.1, USB 2.0 Quantity of interfaces: 1 USB interface USB signal: VCC, DATA+, DATA-, GND Transmission rate: high speed 480Mbps, full speed 12Mbps Interface form: USB B-type socket, Female Transmission distance: 5m |
|
Operating System |
Windows 98/ME/2000/XP/Server 2003/Server 2008/7/Vista, Linux, MAC OS-X |
| LED Indicator |
Power supply indicator, serial port data sending/receiving indicator |
|
Power Requirement
|
Supports optional USB interface power supply or external 5VDC power supply, both can supply electricity simultaneously;Thereinto, 5VDC power supply adopts DC round head, external circle is negative pole, and inner core is positive pole
|
|
Power Consumption |
300mA
|
|
Environmental Limit |
Operating temperature: -20~60℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation)
|
|
Physical Characteristic |
Housing: metal, IP30 protection grade Installation: desktop mounting Dimension (W x H x D): 160mm×28mm×94mm Weight: 500g
|
|
Certification |
CE, FCC, RoHS |
