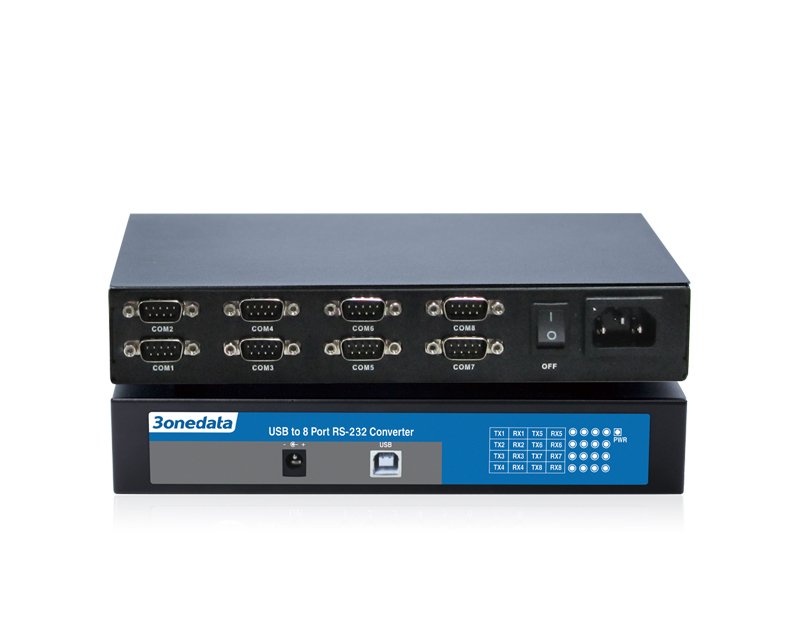

USB8232I
USB - Seri (RS-232) Çevirici
USB→8*RS-232, USB2.0, 2KVAC isolation, ESD Level 4, 9VDC
- USB ve 8xRS-232 arasında çift yönlü iletişim
- Otomatik seri port sinyal hızı ayarlama
- Seri port için 15KV elektrostatik koruma ve 1.5KVAC izolasyon koruması
- 9VDC
- -40~75℃
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 8 |
| RS-232 | : | 8 |
| USB | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| Port İzolasyonu | : | VAR |
| Serial Port |
Standard: EIA RS-232C Quantity of serial port: 8 RS-232 serial ports RS-232 signal: DCD, RXD, TXD, DTR, GND, DSR, RST, CTS, RI Baud rate: 300bps~115200bps Data bit: 7bit, 8bit Stop bit: 1bit, 2bit Parity bit: None, Even, Odd, Space, Mark Interface form: DB9, Male Transmission distance: 15m Interface protection: 15kV electrostatic protection, 1.5kV isolation protection
|
|
USB Port |
Standard: USB 1.1, USB 2.0 Quantity of interfaces: 1 USB interface USB signal: VCC, DATA+, DATA-, GND Transmission rate: high speed 480Mbps, full speed 12Mbps Interface form: USB B-type socket, Female Transmission distance: 5m |
|
Operating System |
Windows 2000/XP/Server 2003/Server 2008/Vista, Windows XP embedded, Windows CE 4.2/5.0/5.2/6.0, Linux (above version 2.4), MAC OS-X |
| LED Indicator |
Power supply indicator, serial port data sending/receiving indicator |
|
Power Requirement
|
9VDC, adopts DC round head
|
|
Power Consumption |
No-load: 2.86W@9VDC Full-load: 2.88W@9VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation)
|
|
Physical Characteristic |
Housing: metal, IP30 protection grade Installation: desktop mounting Dimension (W x H x D): 230mm×40mm×148mm Weight: 1kg
|
|
Certification |
CE, FCC, RoHS
|
| Industrial Standards |
IEC 61000-4-2 (ESD, Electrostatic discharge), Level 4 Air discharge: ±15kV Contact discharge: ±8kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
