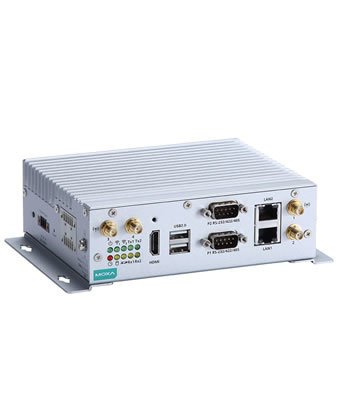

V2201-E1-T
Fanless, ultra-compact, rugged x86 IIoT embedded computer
DataSheet Link : V2201-E1-T
Moxa V2201 serisi, Intel® Atom ™ E3800 serisi işlemciye sahip ultra-kompakt x86 mimarisindedir. Çok çeşitli iletişim gerektiren uygulamalarda, sahip olduğu güvenli I/O tasarımı ve harici olarak desteklenen kablosuz modül* seçenekleri ile tercih edilen bir platformdur.
V2201 serisi, I/O durum izleme ve uyarıları, sistem sıcaklık izleme ve sistem güç yönetimi için "Moxa Hardware Monitoring" özelliğini destekler. Sistem durumunu yakından takip ederek olası hatalara müdahaleyi kolaylaştırır ve uygulamalarınız için en güvenilir platformu sağlar.
* Kablosuz modüller ayrıca satın alınmalıdır.
|
V2201-E1-T |
(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, -40 to 85°C operating temperature |
|
(Pre-Configured Model) x86 ready-to-run embedded computer with Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, Linux Debian 8 pre-installed, -40 to 85°C operating temperature |
|
|
(Pre-Configured Model) x86 ready-to-run embedded computer with Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, Windows Embedded Standard 7 pre-installed, -40 to 85°C operating temperature |
|
|

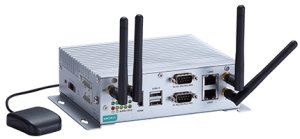

(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 5 wireless SMA connectors, -40 to 85°C operating temperature or -40 to 70°C operating temperature with Moxa recommended wireless modules* (3G/LTE + Wi-Fi). *wireless modules must be purchased separately |
|
|
(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3826, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, -40 to 85°C operating temperature |
|
|
(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3826, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 5 wireless SMA connectors, -40 to 85°C operating temperature or -40 to 70°C operating temperature with Moxa recommended wireless modules* (3G/LTE + Wi-Fi). *wireless modules must be purchased separately. |
|
|
(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, -40 to 70°C operating temperature |
|
|
(CTO Model) x86 ready-to-run embedded computer with Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 5 wireless SMA connectors, -40 to 70°C operating temperature with Moxa recommended wireless modules* (3G/LTE + Wi-Fi). *wireless modules must be purchased separately. |
|
|
(Pre-Configured Model) x86 ready-to-run embedded computer with Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 USIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 5 wireless SMA connectors, 4GB RAM, 16GB SD Card, 32GB mSATA and Linux Debian 8 pre-installed, -40 to 70°C operating temperature with Moxa recommended wireless modules* (3G/LTE + Wi-Fi) *wireless modules must be purchased separately. |
|
Five-band GSM/GPRS/EDGE/UMTS/HSPA, 1.5 dBi, omni-directional, rubber duck antenna |
|
|
GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omni-directional, rubber duck antenna |
|
26 dBi, 1572 MHz, L1 band antenna for GPS |
Wireless AP Montaj Kit
|
Din-rail mounting kit |
|
SprakLAN WPEA-251NI Wi-Fi mini card x 1, black screw x 4 |
|
|
Sierra Wireless MC7304 LTE mini card x 1, black screw x 4 |
|
2.5A/250V Continental European (EU) power cord, 183 cm length |
|
|
Power Adapter |
|
2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector |
| Hardware Specifications | |
| • Computer | |
| CPU | V2201-E1 Series: Intel® Atom™ Processor E3815 (Single Core, 512K Cache, 1.46 GHz) V2201-E2 Series: Intel® Atom™ Processor E3826 (Dual Core, 1M Cache, 1.46 GHz) V2201-E4 Series: Intel® Atom™ Processor E3845 (Quad Core, 2M Cache, 1.91 GHz) |
| OS | Windows Embedded Standard 7 64-bit or Linux Debian 8 64-bit |
| System Memory | 1 DDR3 SO-DIMM slot, 8 GB max. • E3815 and E3826 support DDR3L-1066 • E3845 supports DDR3L-1333 |
| USB | 1 bootable USB 3.0 port, 2 bootable USB 2.0 ports (type A) |
| • Storage | |
| mSATA | 1 internal mini-PCIe socket for OS storage |
| SD | 1 SD 3.0 (SDHC/SDXC) socket for storage expansion* *W7E only supports SD 2.0 |
| • Audio | |
| Output | Line-out interface (together with HDMI) |
| • Other Peripherals | |
| Expansion Slot | 2 Mini-PCIe sockets• 1 USB signal, for Sierra Wireless 3G/LTE module • 1 USB + PCIe signal |
| USIM | 1 USIM slot |
| • Display | |
| Graphics Controller | Intel® HD (integrated) |
| Connector Type | 1 HDMI connector (type A) |
| Display Interface | Supports HDMI 1.4a, 1920 x 1080 pixels @ 60/24 Hz |
| • Ethernet Interface | |
| LAN | Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2 |
| Isolation Protection | 1.5 kV |
| • Wireless SMA Interface | |
| Wi-Fi | 2 SMA connectors |
| 3G/LTE | 2 SMA connectors |
| GPS | 1 SMA connector |
| • Serial Interface | |
| Serial Standards | RS-232/422/485 software selectable ports (DB9 male) x 2 |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Digital Input | |
| Input Channels | DI x 4 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 1: +3 V max. Logic level 0: +10 V to +30 V (Source to DI) |
| Connector Type | 10-pin screw-fastened Euroblock terminal |
| Isolation | 3 kV optical isolation |
| • Digital Output | |
| Output Channels | DO x 4, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin screw-fastened Euroblock terminal |
| Isolation | 3 kV optical isolation |
| • LEDs | |
| System | Power, user-defined |
| Storage | mSATA, SD |
| LAN | 2 LEDs per port (100/1000 Mbps) |
| Serial | 2 LEDs per port (Tx and Rx) |
| Wireless | Mini-PCIe 1, Mini-PCIe 2 |
| • Switches and Buttons | |
| Power Switch | on/off (left-side panel) |
| Reset Button | For warm reboot (left-side panel) |
| • Physical Characteristics | |
| Housing | Aluminum |
| Weight | 940 g (2.09 lb) |
| Dimensions | Without ears: 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in) With ears: 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in) |
| Mounting | DIN rail, wall |
| • Environmental Limits | |
| Operating Temperature |
• E1/E2 models: -40 to 85°C (-40 to 185°F) *Wireless modules must be purchased separately |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Anti-Vibration | IEC 60068-2-64: 5 Grms, 5 Hz to 500 Hz, 1 hr/axis w/ mSATA, SD |
| Anti-Shock | IEC 60068-2-27: 100 g/11 ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, SD |
| • Power Requirements | |
| Input Voltage | 9 to 36 VDC (3-pin terminal block for V+, V-, SG) |
| Input Current | 2 A @ 9 VDC |
| Power Consumption | 18 W |
| • Standards and Certifications | |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-03 (60950-1-07), EN 60950-1, UL 508 |
| EMC | EN 55032/24, EN 61000-6-2/6-4* *Passed with AC/DC adapter. |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Green Product | RoHS, CRoHS, WEEE |
| • Reliability | |
| Automatic Reboot Trigger | Software-programmable watchdog timer configurable from 1 to 255 seconds |
| • MTBF (mean time between failures) | |
| Time | 408,275 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty Note: These hardware specifications describe the embedded computer unit itself, but not its official accessories. In particular, the wide temperature specification does not apply to accessories such as power adapters and cables. |
| Software Specifications | |
| • Linux | |
| OS | Linux Debian 8 64-bit |
| Terminal Server (SSH) | Provides secure encrypted communications between two untrusted hosts over an unsecure network |
| File System | EXT2, EXT3, EXT4 |
| Internet Protocol Suite | TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP,PAP,DHCP, NTP,NFS, SSH, PPP, SFTP, RSYNC, SSL |
| Internet Security | OpenVPN, IPTables |
| Secure Shell for Remote Access | SSH allows remote logins to a secure encrypted console from any connected network |
| Watchdog | Features a hardware function to trigger system reset in a user specified time interval (Linux standard API) |
| Embedded Self-Health Maintenance Software | Moxa Proactive Monitoring |
| • Windows Embedded Standard 7 | |
| Core OS | • 64-bit support • Remote Client • Remote Procedure Call |
| Applications and Services Development | • Remote Desktop Protocol 7.1 • COM OLE Application Support • COM+ Application Support • MSMQ |
| Internet Services | • Internet Explorer 8.0 • IIS 7.0 |
| Diagnostics | • Common Diagnostic Tools • Problem Reports and Solutions |
| Fonts | Western, Middle Eastern, South East Asian, and South Asian |
| Graphics and Multimedia | • MPEG Layer-3 Audio Codecs (MP3) • MPEG4 Decoders • DirectX and Windows Device Experience |
| Management | • Group Policy Management • Windows Management Instrument (WMI) • Windows Update |
| Networking | • Extensible Authentication Protocol (EAP) • Internet Authentication Service • Telnet Server • Bluetooth • Domain Services • Network Access Protection • Network and Sharing Center • Quality of Service • Remote Access Service (RAS) • Telephony API Client • Windows Firewall • Wireless Networking |
| Security | • Credential Roaming Service • Credentials and Certificate Management • Windows Authorization Manager (AZMAN) • Windows Security Center • Active Directory Rights Management • Security Base • Encrypted File System (EFS) |
| Embedded Features | • Enhanced Write Filter (EWF) • File-Based Write Filter (FBWF) • Registry Filter • WSDAPI for .NET |
| File Systems and Data Store | • Windows Data Access Components • Windows Backup and Restore |
| Maintenance | Moxa Proactive Monitoring and Moxa Smart Recovery |
